SKU: AA003-MB

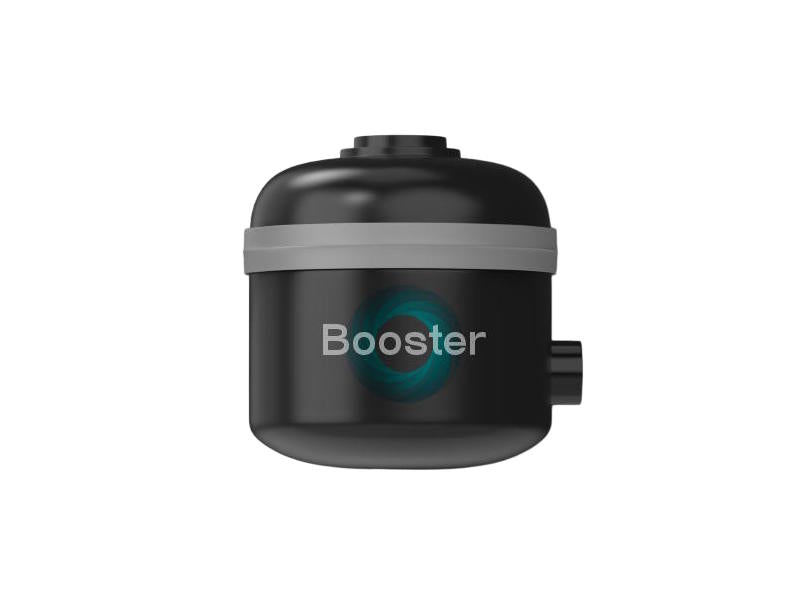

Aqua-Air Dry Motor Booster
- Increase performance 50 to 100 Percent
- Increase CFM and Waterlift
- Add to existing system
Availability: In stock
-
Free shipping on all orders of $50+ -
Easy returns within 30 days -
For Assistance: Call (866) 972-8227
Description

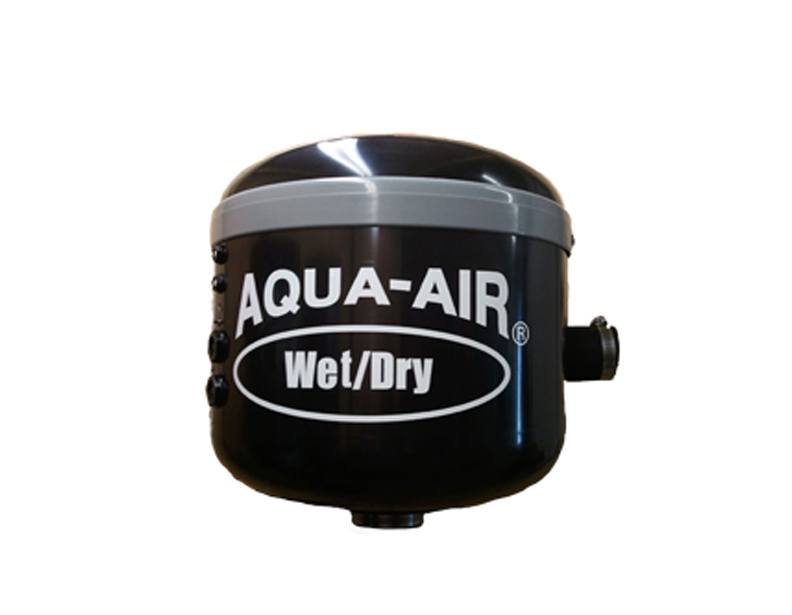

Aqua-Air Motor Booster for Various Models
The Aqua-Air Dry Motor Booster adds additional performance to the Aqua-Air Wet/Dry Central Vacuums. Adding a Motor Booster is an economical way to increase the performance of your central vacuum system without the need to purchase an entire new power unit. The Dry Motor Booster increase both the CFM and Water lift of your existing system increasing performance by 50 to 100 percent. All Booster Motors systems will require a new or existing separation tank attached to the system.
This Dry Motor Booster unit is available with several motor options to match your power needs for your application and to match up with your existing systems. Call 1-866-972-8227 today to place your order.
This Dry Motor Booster unit is available with several motor options to match your power needs for your application and to match up with your existing systems. Call 1-866-972-8227 today to place your order.
-
AA003-MB - Dry Motor Booster 7.2 for Models 150 and 250
-
AA003-MB 8.4 - Dry Motor Booster 8.4 for Models 158 and 258
-
AA002-DB - Model 230 Dry 5.7 Booster Motor
Part numbers and Alternate Part numbers
AA003-MB 8.4, 158, 258, 230, 150, 250, AA002-DB
Product Specs
| Type: | AA003-MB Booster Extractor Motor | AA003-MB 8.4 Booster Extractor Motor | AA002-DB Booster Extractor Motor |
| Motor Type: | 3-Stage | 2-Stage | 3-Stage |
| For Models: | 150 and 250 | 158 and 258 | 230 |
| Airflow: | 204 CFM | 141 CFM | 202 CFM |
| Volts: | 120 | 120 | 120 |
| Amps: | 14 | 14 | 13.7 |
| Water Lift: | 145" | 146" | 137" |
| Color: | Black | Black | Black |
| Motor Size: | 7.2" | 8.4" | 5.7" |
| Free Shipping: | Yes | Yes | Yes |
Features
AA003-MB for Models 150 & 250
- Booster Motor for the Model 150 and 250 with separation tank (14" x 14")
- 7.2" Extractor Motor, 3 stage, epoxy sealed bearings
- 145" Water Lift
- 204 CFM
- 14 amp
- 120 volts
- Booster Motor for Models 158 and 258 with separation tank
- 8.4" Extractor Motors, 2 stage, High Efficiency
- Each motor rated at 146" Water Lift
- 141 CFM
- 14 amp
- 120 volts
- Booster Motor for the Model 230 with separation tank (14" x 14")
- Two 5.7" Extractor Motors, 3 stage, epoxy sealed bearings
- Each motor rated at 137" Water Lift
- 202 CFM
- 13.7 amp, each motor
- 120 volts
