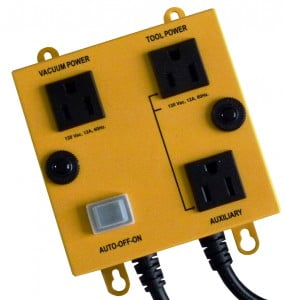

Dustless Ivac Dust Collector Switch Box Part D0017

Dustless iVac Dust Collector Switch Box – Part #D0017 is a smart automatic vacuum switch box that automatically starts and stops your Dustless vacuum when your power tool turns on and off — eliminating the need to manually control the vacuum during operation. More versatile than onboard dust collector tool starts, the iVac Switch Box runs off two separate 115V/15A circuits, so you never need to limit tool amperage or throttle down your vacuum to share a single circuit.

A built-in vac on/off delay keeps the vacuum running briefly after the tool shuts off, clearing the hose of remaining debris before the vacuum powers down. Mounting lobes allow the switch box to be wall-mounted for a clean, organized workspace. Compatible with all Dustless vacuums.

Key Features

• Automatic Tool-Triggered Start/Stop: Vacuum starts when your tool turns on and stops when it turns off — hands-free dust collection
• Dual 115V/15A Circuits: Runs the vacuum and tool on separate circuits — no need to limit amperage or throttle down either device
• Vac On/Off Delay: Keeps vacuum running after tool shuts off to clear hose of remaining debris before powering down
• Three-Mode Power Switch: Manual, automatic, and power off modes for flexible operation
• Separate 15A Circuit Breakers: Independent onboard breakers for the vacuum and tool outlets for added safety
• Wall-Mountable: Mounting lobes allow secure wall installation for a clean, organized setup
• Durable ABS Construction: Built for job site and workshop environments
• Compatible with All Dustless Vacuums: Works seamlessly with the full Dustless vacuum lineup
• UL Listed: Meets UL safety standards
• 1-Year Limited Warranty

What’s Included

• iVac Switch Box
• Owner’s Manual

Product Specifications

• Brand: Dustless / iVac
• Part Number: D0017
• UPC: 736211443113
• Color: Yellow
• Voltage: 115V
• Circuit Capacity: 2 × 15A independent circuits
• Dimensions: 10.5" L × 7.75" W × 2.25" H
• Weight: 1.7 lbs
• Construction: ABS
• Certifications: UL Listed
• Warranty: 1-Year Limited
• Condition: New

Note: Compatible with all Dustless vacuums. Ensure your tool and vacuum circuits are within the 115V/15A rating per outlet before use.
