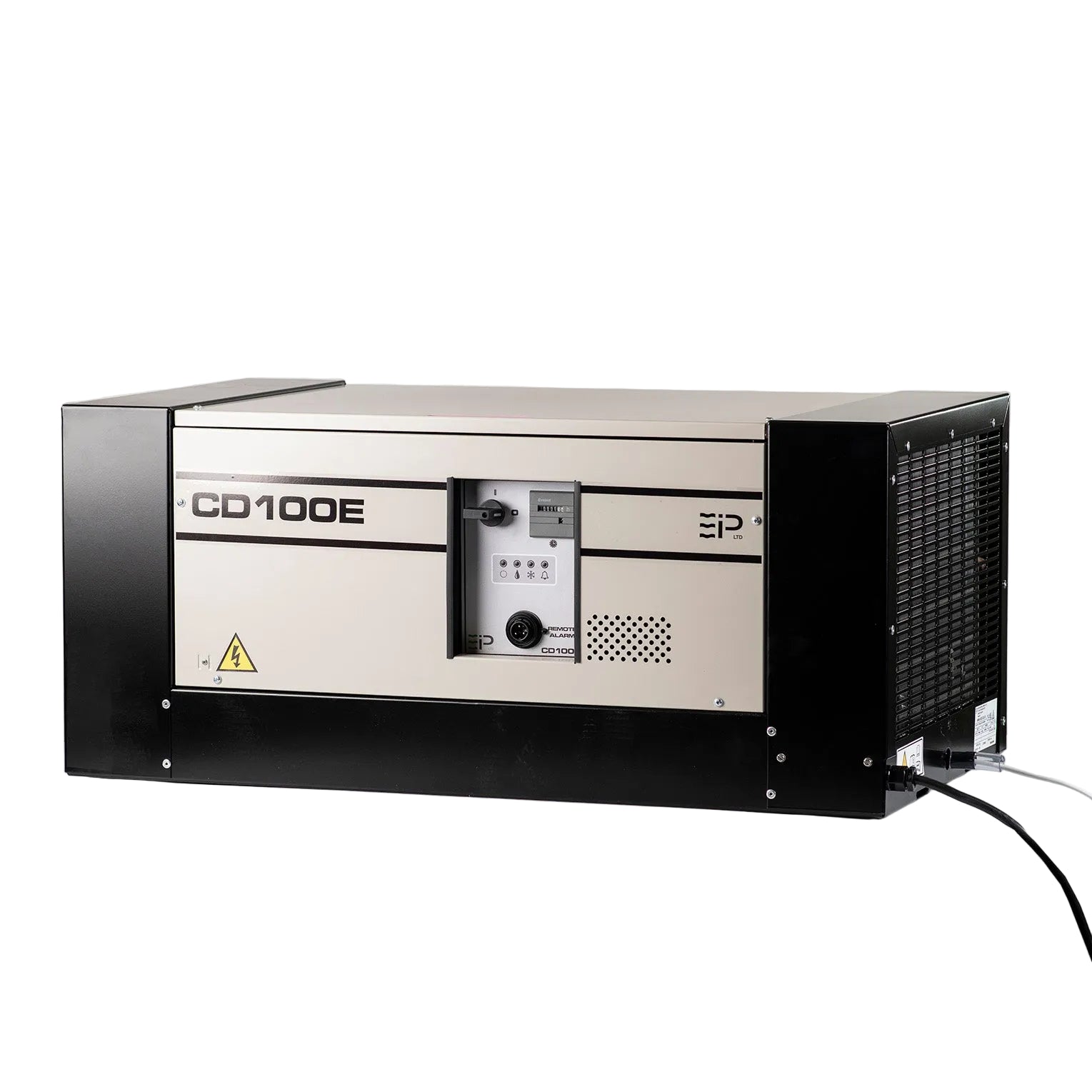

EbacUSA CD100E Commercial Dehumidifier 110V 10273GY-US

Commercial humidity control with remote alarm capability and a supplied wall mounting kit.

The EbacUSA CD100E Commercial Dehumidifier combines the CD100 range’s moisture-removal performance with additional monitoring features for permanent installations. An adjustable control humidistat maintains the selected humidity level, while a separate alarm humidistat and voltage-free remote alarm connector provide a way to identify high-humidity conditions remotely. The CD100E also includes a power-on indicator and an hours-run meter for tracking operating time.

Commercial and Industrial Applications

Ebac identifies warehouses, storage rooms, electrical and communications switching stations, locker rooms, basements, pumping stations, offshore oil rigs and active or laid-up marine vessels as applications for the CD100 range. The CD100E’s additional alarm features are particularly useful where remote monitoring is required. Its supplied wall mounting bracket and installation kit support a fixed setup, and the manufacturer also lists free-standing operation.

For storage and equipment spaces, automatic humidistat control allows the dehumidifier to cycle as needed rather than relying on repeated manual adjustments. Confirm capacity against the room’s actual moisture load and operating conditions before selecting a unit.

Performance and Construction

Ebac publishes a typical extraction rating of 97 pints per day and airflow of 324 CFM for the CD100E. Its reverse-cycle defrost system supports operation down to 33°F, within a published operating range of 33°F to 95°F. Moisture condenses on the evaporator, collects in the condensate tray and drains through the condensate tube; the outgoing air is reheated by the condenser.

• Rugged epoxy-coated steel chassis.

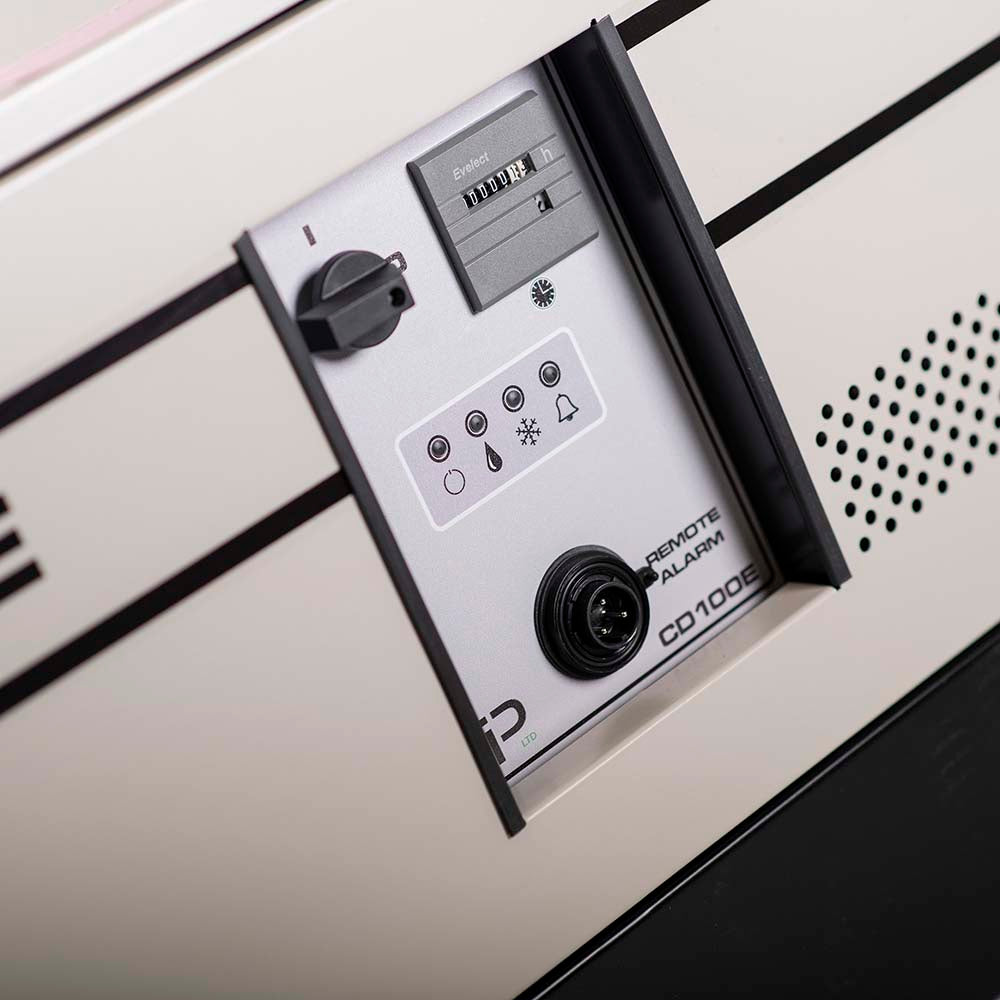

• Adjustable control humidistat and concealed alarm/control humidistats.
• Adjustable alarm humidistat with voltage-free remote alarm connector.
• Power-on indicator and hours-run meter.
• Electronic defrost control and reverse-cycle defrost.
• Gravity drain with a 1/2-inch outside-diameter connection.
• High-level cut-out switch and fitted mains plug.

What’s Included

• 1 CD100E static dryer/dehumidifier.
• 1 owner’s manual, listed by Ebac as the CD100 DV owner’s manual.
• 1 wall mounting kit.
• 1 free socket, as listed by the manufacturer.
• 1 Jubilee clip.
• 1 length of 12mm inside-diameter PVC tubing, 3 meters long.

Why Choose the CD100E?

The CD100E adds monitoring and installation features beyond the standard CD100: an adjustable humidity alarm, remote alarm connection, runtime measurement, power indication and a supplied wall mounting kit. Choose it when you need to monitor humidity conditions in a fixed commercial installation and want visible operating information alongside automatic humidity control.

For help confirming the correct CD100E configuration, call eVacuumStore at 866-972-8227 or email support@evacuumstore.com.
