EbacUSA CD425 Commercial Dehumidifier 220V 10140BR-US
- Designed for commercial and industrial humidity control
- Model CD425 with part number 10140BR-US
- With a published typical extraction rating of 285 ppd
-
Free shipping on all orders of $50+ -
Easy returns within 30 days -
For Assistance: Call (866) 972-8227
Description

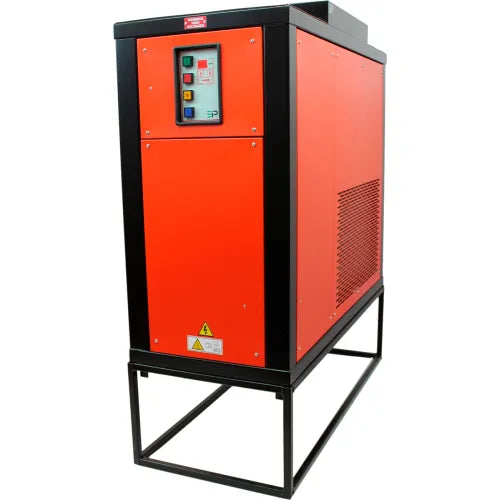

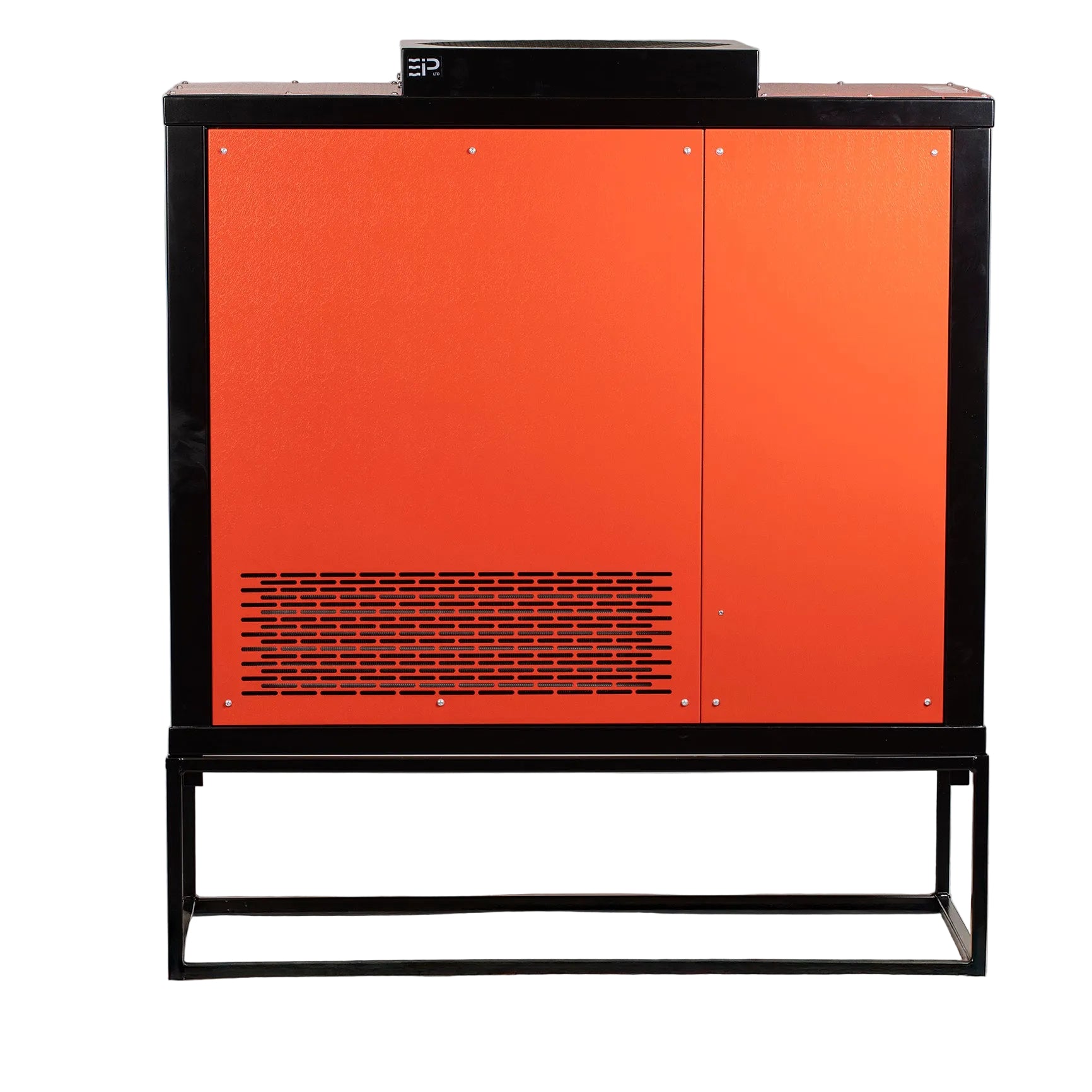

Ebac CD425-D Industrial Dehumidifier
The Ebac CD425-D is designed for humidity control in warehouses, factories, offices, and other large facilities. This listing is for the 220V, three-phase configuration, part number 10140BR-US, with gravity drainage and no built-in water pump.
What's Included
- 1 CD425-D 220V Dehumidifier
- 1 CD425-D 220V Owner's Manual
- 1 PVC tube, 3/8-inch inside diameter, 7.8 meters long
Large-Space Moisture Control
With a listed typical extraction rate of 285 pints per day and airflow of 1,750 CFM, the CD425-D provides a capacity reference for industrial moisture-control planning. The supplied range information also describes removal of up to 50 gallons per day under maximum conditions. These figures describe different operating conditions and should not be treated as interchangeable ratings; actual extraction depends on temperature and relative humidity.
The listed operating range is 33°F to 95°F. Units can be used individually or in multiples, with ducted applications possible where the installation design requires them. Match the equipment and layout to the moisture load rather than relying on the effective-volume rating alone.
How It Removes Moisture
A fan draws moist air over the cold evaporator coil, cooling it below its dew point. Condensed moisture collects in the tray and drains away through the gravity-drain arrangement. Air then passes over the condenser coil and returns to the space warmer and drier. Repeated circulation gradually reduces relative humidity.

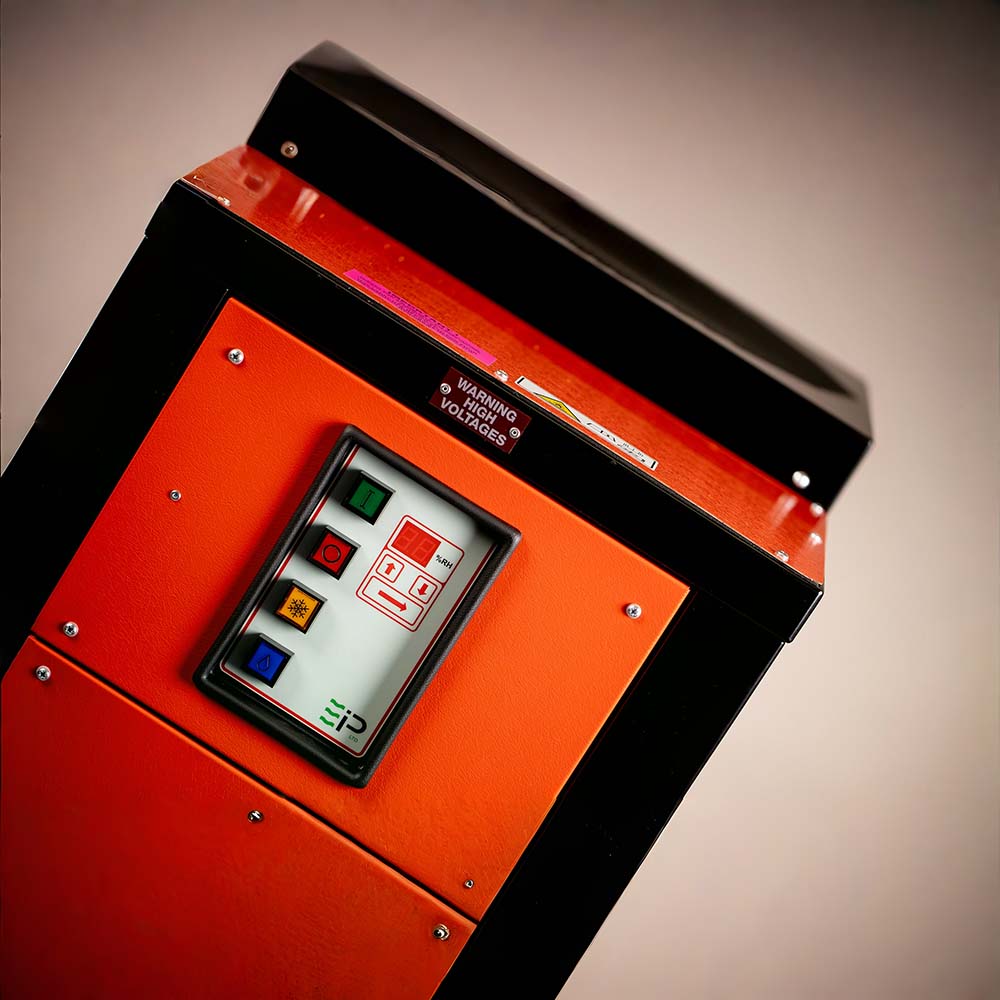

Reverse-cycle defrost manages frost buildup during operation. An adjustable humidistat lets you select the desired humidity level, while the room-humidity display and status indicators help monitor operation. The unit cycles on and off according to humidity demand.
Choose the Correct Drainage Configuration
Part number 10140BR-US uses gravity drainage through two 5/8-inch outside-diameter outlets. The separate 10141BR-US configuration includes a high-capacity water pump; that pump is not included with this listing. Confirm the available 220V three-phase supply and drainage setup before ordering.
For equipment-selection assistance, call eVacuumStore at 866-972-8227 or email support@evacuumstore.com.
Part numbers and Alternate Part numbers
Product Specs
| Specification | Detail |
|---|---|
| Brand | EbacUSA |
| Model | CD425-D, 220V without pump |
| Part Number | 10140BR-US |
| Height | 47 inches |
| Width | 43 inches |
| Depth | 19 inches |
| Weight | 353 lbs |
| Voltage | 220V |
| Phase | 3 |
| Frequency | 60 Hz |
| Power | 3,680W |
| Current | 16A |
| Airflow | 1,750 CFM |
| Noise Level | 69 dBA |
| Refrigerant | R454c |
| Effective Volume | 52,972 cu. ft. (previous listing: 1,500 m³) |
| Typical Extraction | 285 pints/day; test conditions not supplied |
| Operating Temperature Range | 33°F–95°F |
| Compressor | Reciprocating |
| Water Pump | Not included |
| Gravity Drain | Two 5/8-inch outside-diameter outlets |
Features
- On/off control
- Electronic defrost control
- Compressor restart delay timer
- Reciprocating compressor
- Free-standing design
- Adjustable control humidistat
- Reverse-cycle defrost system
- Status indicators
- Power-on indicator
- Epoxy powder coating
- Gravity drain with two 5/8-inch outside-diameter outlets
- No high-capacity water pump in configuration 10140BR-US
