EbacUSA CD425 Commercial Dehumidifier With Pump 220V 10141BR-US

High-capacity industrial humidity control with digital settings and an internal condensate pump.

The EbacUSA CD425-D 220V Commercial Dehumidifier with Pump is built for moisture control in large commercial and industrial spaces. This listing is for part number 10141BR-US, the 220V, 3-phase version equipped with a high-capacity internal water pump. It is not the gravity-drain-only model or the separate 460V configuration.

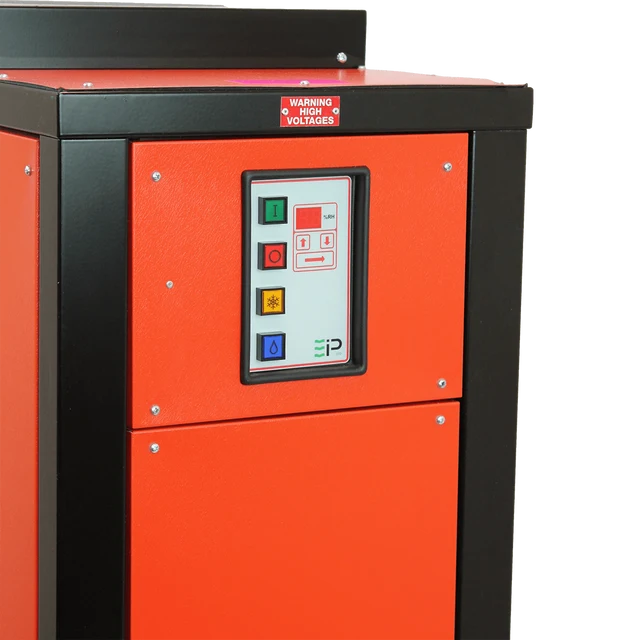

Digital humidity control lets you enter a specific humidity level and view actual room humidity. The unit automatically switches on and off as needed to maintain the selected level, providing controlled drying rather than requiring continuous manual adjustment.

Commercial and Industrial Applications

The CD425-D range was developed for warehouses, factories, offices, and other large facilities where excess moisture and condensation can affect equipment, inventory, and the building itself. Ebac lists an effective volume of 52,972 cubic feet, approximately 1,500 cubic metres. Suitability depends on the space, moisture load, and operating conditions.

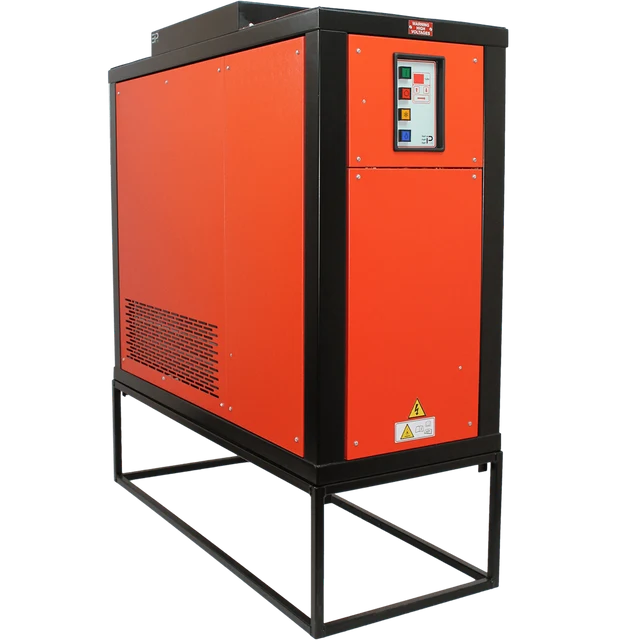

The free-standing design can be used individually or as part of a multiple-unit arrangement. Ducted applications are also possible where the installation design calls for them; confirm ducting requirements before planning the system.

Performance and Construction

Ebac lists typical extraction at 285 pints per day, with 1,750 CFM airflow. Moist air passes over a cold evaporator coil, where water condenses and collects for removal by the internal pump. The air then passes over the condenser coil and returns to the space warmer and with lower absolute humidity. Actual extraction varies with temperature and humidity.

The reverse-cycle defrost system and electronic defrost control support operation at ambient temperatures from 33°F to 95°F. A compressor restart-delay timer, operating-status indicators, and power-on indicator provide additional control and monitoring.

A welded-steel chassis with protective epoxy and vinyl coatings is designed for demanding industrial environments. This configuration uses a reciprocating compressor and R454c refrigerant. The included pump handles condensate removal; Ebac’s feature table does not list the gravity-drain arrangement for this pump-equipped version.

What’s Included

• 1 CD425-D 220V dehumidifier with internal high-capacity condensate pump
• 1 CD425-D 220V owner’s manual
• 1 length of 3/8-inch ID PVC tube, 7.8 metres long

Why Choose the CD425-D with Pump?

This configuration combines industrial construction, adjustable humidity control, and pump-assisted condensate removal for large-space moisture management. Reverse-cycle defrost supports cooler environments within the published temperature range, while ductability gives installation designers another option for distributing airflow.

Need help matching the CD425-D to your facility? Contact eVacuumStore at 866-972-8227 or support@evacuumstore.com.
