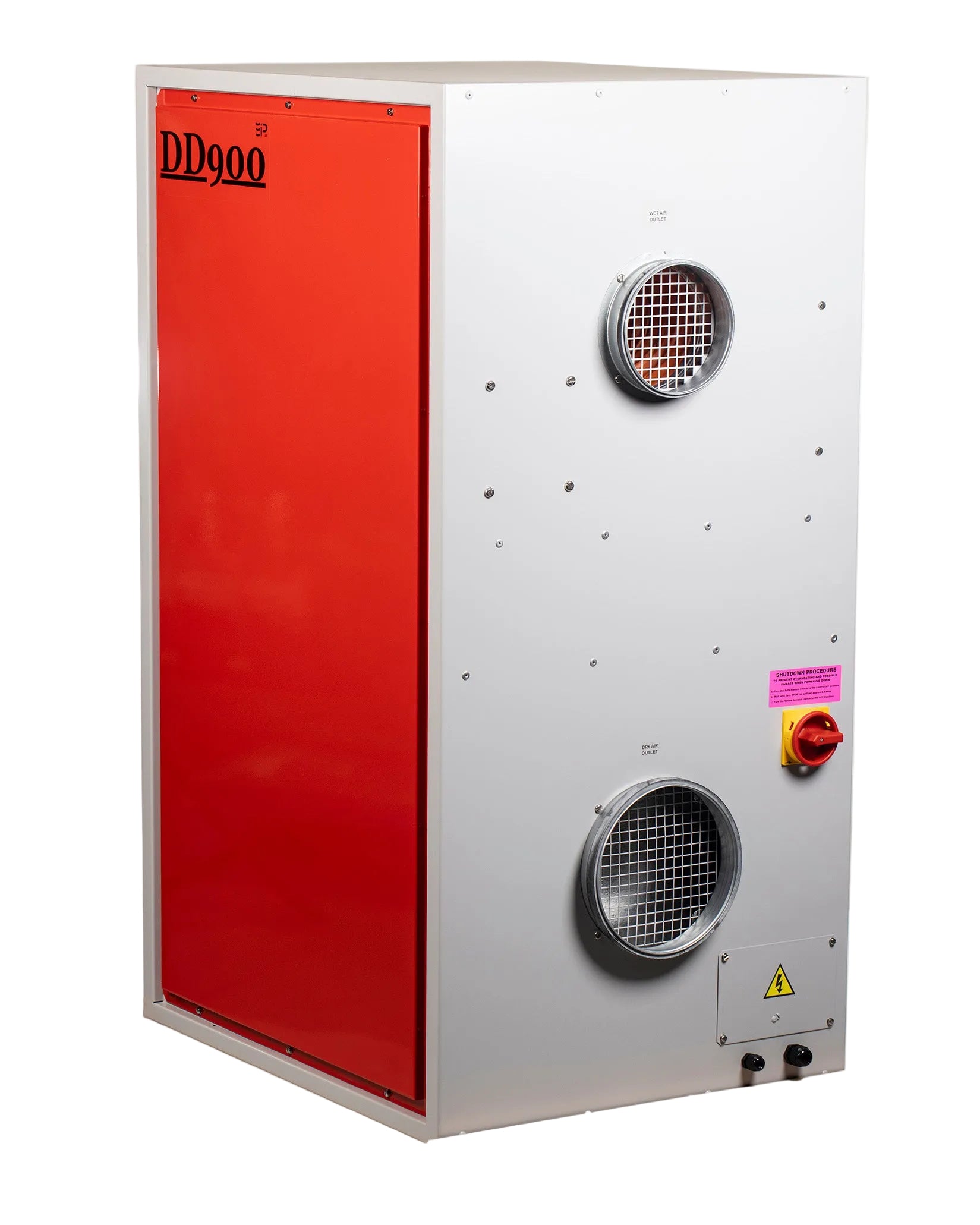

EbacUSA DD900 Desiccant Dehumidifier 220V 3 Phase 10520GR-US
- Designed for low-temperature and deep-drying applications
- Model DD900 with part number 10520GR-US
- With a published typical extraction rating of 364 ppd
-
Free shipping on all orders of $50+ -
Easy returns within 30 days -
For Assistance: Call (866) 972-8227
Description
Low-temperature humidity control with adjustable drying performance for demanding industrial applications.
The EbacUSA DD900 Desiccant Dehumidifier helps maintain low-humidity conditions where moisture can contribute to corrosion, condensation, or problems with moisture-sensitive products. This listing is for the 220V, 3-phase model, part number 10520GR-US, not the separate 460V version.
Its upright, compact design fits applications where installation space is limited. Unlike a refrigeration dehumidifier that collects liquid water, the DD900 uses a silica-gel rotor to remove moisture from process air and releases that moisture through a separate heated regeneration-air stream.
Commercial and Industrial Applications
The DD900 is designed for cooler environments, deep-drying applications, and processes that require low humidity or a low dew point. It can support moisture control during the manufacture, packaging, and storage of hygroscopic products, as well as applications where limiting condensation and corrosion is important.
With a manufacturer-listed operating range of -4°F to 104°F, the DD900 offers a desiccant-drying option for conditions where low-temperature performance matters. Actual moisture removal depends on air conditions and the selected settings.
Performance and Construction
Two variable-speed EC fans and an adjustable electronic thermostat let you configure the unit for High Extraction, High Efficiency, or Deep Drying. At Ebac’s stated test conditions of 27°C and 60% relative humidity, the 220V model is rated at 364 pints per day in High Extraction, 286 pints per day in High Efficiency, and 323 pints per day in Deep Drying.
High-capacity PTC heaters provide heat for the regeneration process, while process and regeneration air filters protect the airflow paths. Electronic controls, manual/automatic mode selection, status indicators, and an hours-run meter help operators manage and monitor use. Rubber anti-vibration feet support the free-standing installation.
The DD900 also provides a connection facility for an external humidistat to maintain a preset humidity condition. Humidistats, stainless-steel construction, and inlet duct attachments are optional, not standard included equipment.
What’s Included
- 1 Ebac DD900 220V desiccant dehumidifier
- 1 DD900 220V owner’s manual
Why Choose the DD900?
The DD900 combines low-temperature desiccant operation with adjustable airflow and drying settings, giving you a choice between extraction output, efficiency, and deeper drying. Its compact upright format, dual-air-inlet design, and variable-speed fans allow installation and commissioning for a range of industrial moisture-control needs.
Need help selecting the DD900 or checking installation requirements? Contact eVacuumStore at 866-972-8227 or support@evacuumstore.com.
Part numbers and Alternate Part numbers
Product Specs
| Specification | DD900 220V |
|---|---|
| Brand | EbacUSA |
| Model | DD900 220V |
| Manufacturer Part Number | 10520GR-US |
| Dehumidifier Type | Desiccant |
| Height | 48 in. |
| Width | 28 in. |
| Depth | 23 in. |
| Weight | 198 lb |
| Voltage | 220V |
| Phase | 3 |
| Frequency | 60 Hz |
| Power | 9.8 kW |
| Maximum Process Airflow (Dry Air) | 883 CFM |
| Process Airflow (Dry Air) | 530 CFM |
| Regeneration Airflow (Wet Air) | 147 CFM |

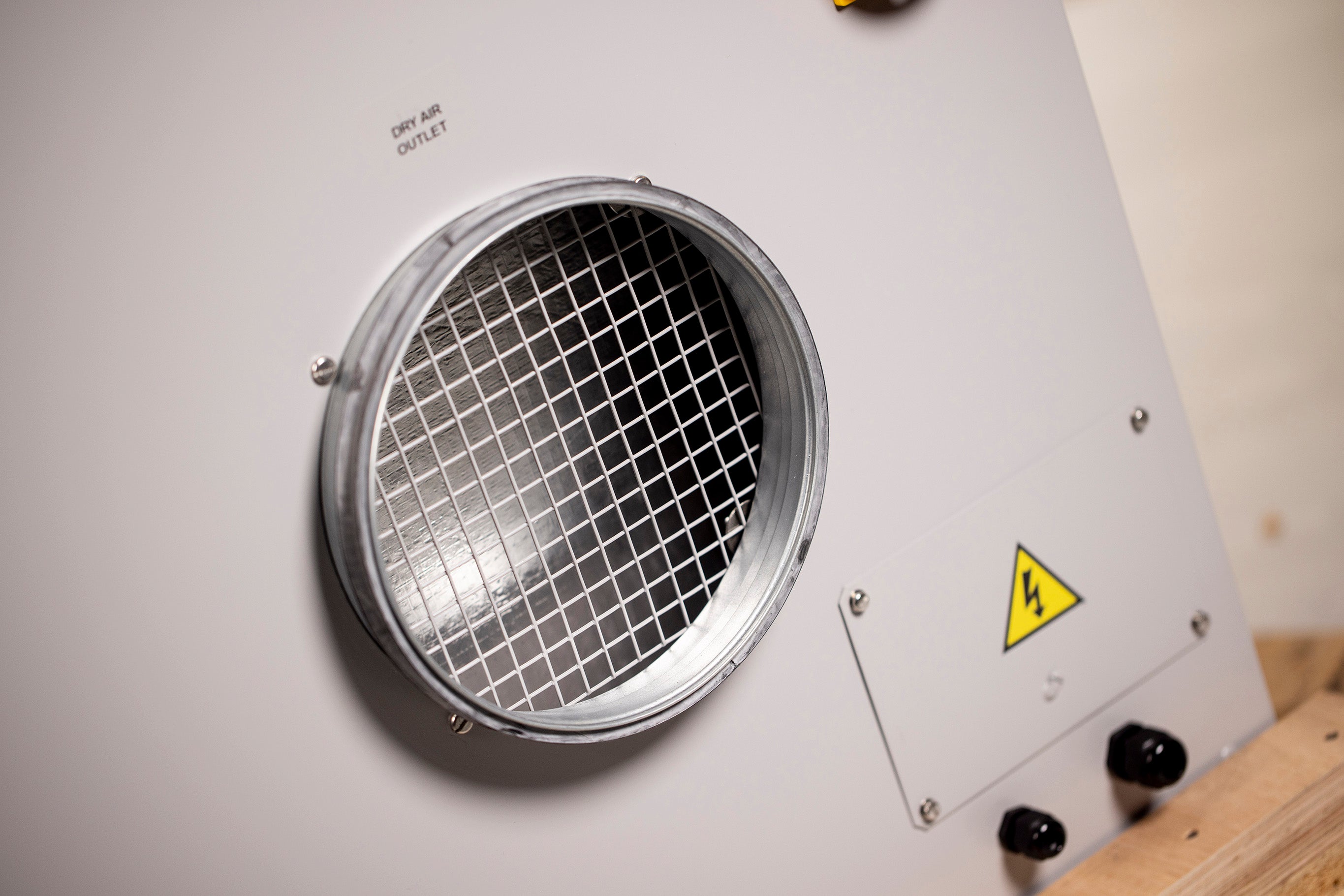

| Process Air Duct Size | 8 in. |
| Regeneration Air Duct Size | 6 in. |
| Rotor Wheel Speed | 13.6 revolutions per hour |
| High Extraction Setting | 364 pints/day at 27°C and 60% relative humidity |
| High Efficiency Setting | 286 pints/day at 27°C and 60% relative humidity |
| Deep Drying Setting | 323 pints/day at 27°C and 60% relative humidity |
| Typical Dry Air Off, High Extraction | 12% |
| Typical Dry Air Off, High Efficiency | 14% |
| Typical Dry Air Off, Deep Drying | 6% |
| Minimum Operating Temperature | -4°F |
| Maximum Operating Temperature | 104°F |
| Included | 1 DD900 220V desiccant dehumidifier and 1 DD900 220V owner's manual |
| Optional Humidistats | 3035157 rotary humidistat; 3035160 humidistat with internal sensor; 3035162 humidistat with external sensor |
| Optional Construction / Attachments | Stainless-steel construction; inlet duct attachments |
Features
- Adjustable electronic thermostat with High Extraction, High Efficiency, and Deep Drying settings
- Two high-efficiency EC fans with variable fan speeds
- High-capacity PTC heaters
- Process and regeneration air filters
- On/off control and electronic controls
- Manual and automatic mode selection
- Remote humidity sensor facility; humidistat sold separately

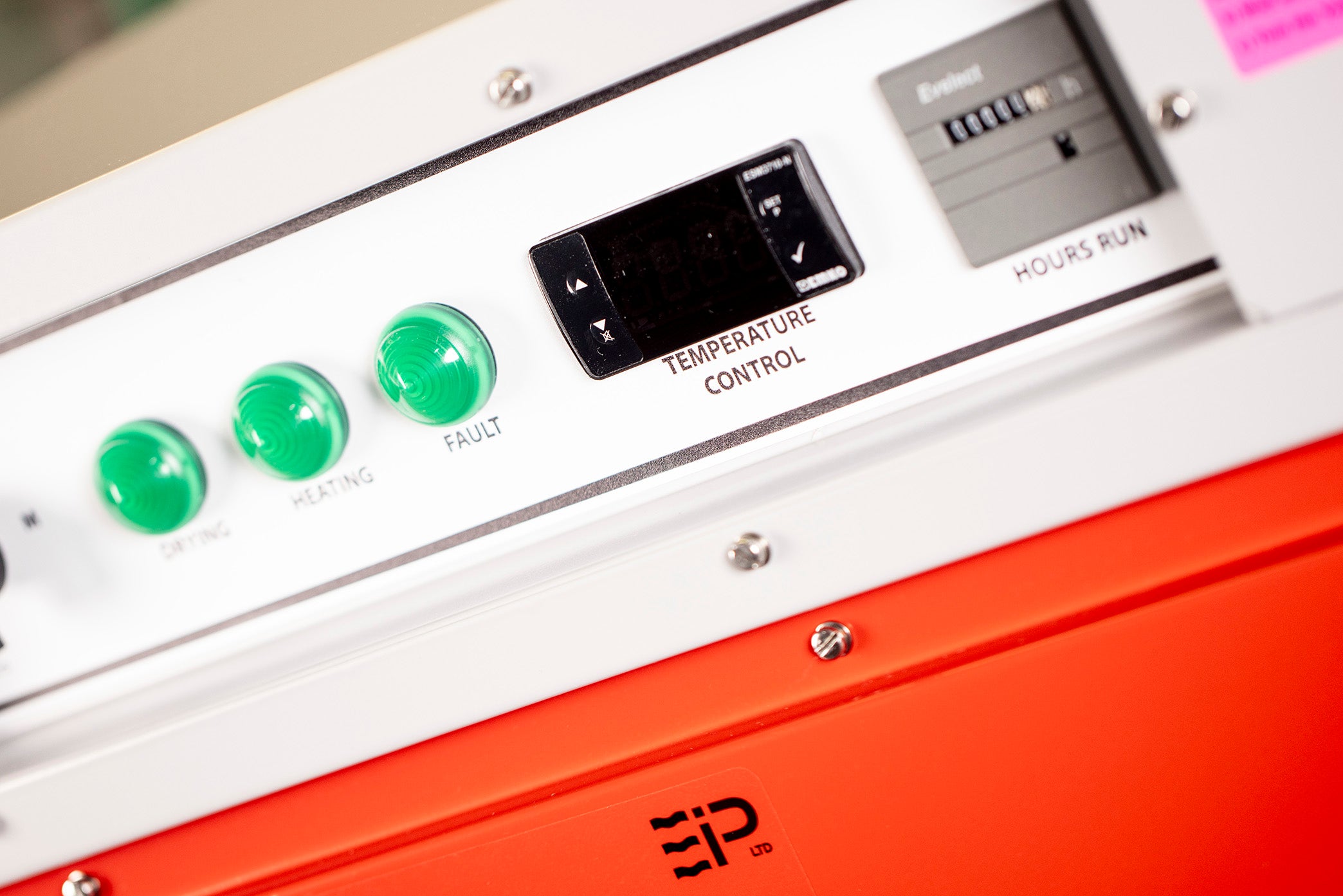

- Hours-run meter and status indicators
- Rubber anti-vibration feet
- Dual-air-inlet design
- Self-contained, free-standing upright design
- High-temperature safety cut-outs
- Manufacturer-listed operating range of -4°F to 104°F
- Optional stainless-steel construction and inlet duct attachments, not standard included equipment
