EbacUSA LD82 Lumber Dryer 110V 13205BB-US

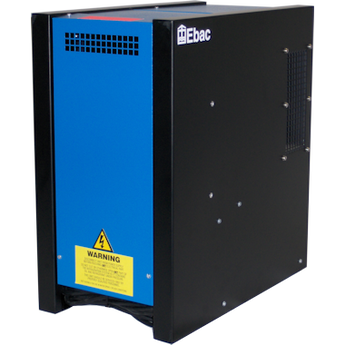

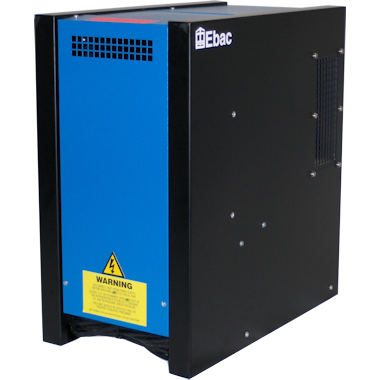

Ebac LD82 Lumber Dryer

The Ebac LD82 Lumber Dryer, part number 13205BB-US, brings controlled lumber drying to cabinet-making shops, furniture workshops, custom woodworking studios, and hobbyist workspaces. Designed for installation in a small insulated drying chamber, it lets you dry green or air-dried lumber in-house with a typical load capacity of approximately 3 m³.

What's Included

• 1 Ebac LD82 Lumber Dryer
• 1 LD82 Owner's Manual
• 1 PVC tube, 16 mm inside diameter, 3 meters long
• 1 Jubilee clip

The drying chamber is self-built. The supplied box list does not identify an STC1 controller as included; confirm controller availability and package configuration before ordering.

Controlled Drying for Small Lumber Loads

The LD82 uses low-temperature drying and centrifugal airflow to circulate air through the chamber. Its maximum operating temperature is listed as 113°F (45°C). Gradual moisture removal supports a controlled drying process, but results depend on species, board thickness, starting moisture content, stacking, and chamber design.

The supplied guidance describes drying to approximately 6% moisture content when required and a recommended reduction of approximately one percentage point per day for 1-inch hardwood. Treat this as application guidance, not a universal drying schedule. Confirm the appropriate schedule for your lumber before starting a run.

The system supports hardwood and softwood drying. Although the supplied information describes mixed-species and mixed-thickness loads, confirm that a shared drying schedule is appropriate for the materials in each batch.

STC1 Control System

When paired with the STC1 controller, the LD82 uses a proportional timer to control drying cycles and a thermostat to regulate heating cycles. The supplied controller information describes a moisture-resistant housing and an electric thermometer for chamber-temperature indication. Confirm the complete installation requirements rather than assuming additional heating or ventilation equipment will never be needed.

Plan Your Workshop Installation

This configuration requires 110V, single-phase, 60Hz power. Review chamber construction, drainage, electrical requirements, and control settings in the operating instructions before installation. For help checking the LD82 configuration, call eVacuumStore at 866-972-8227 or email support@evacuumstore.com.
