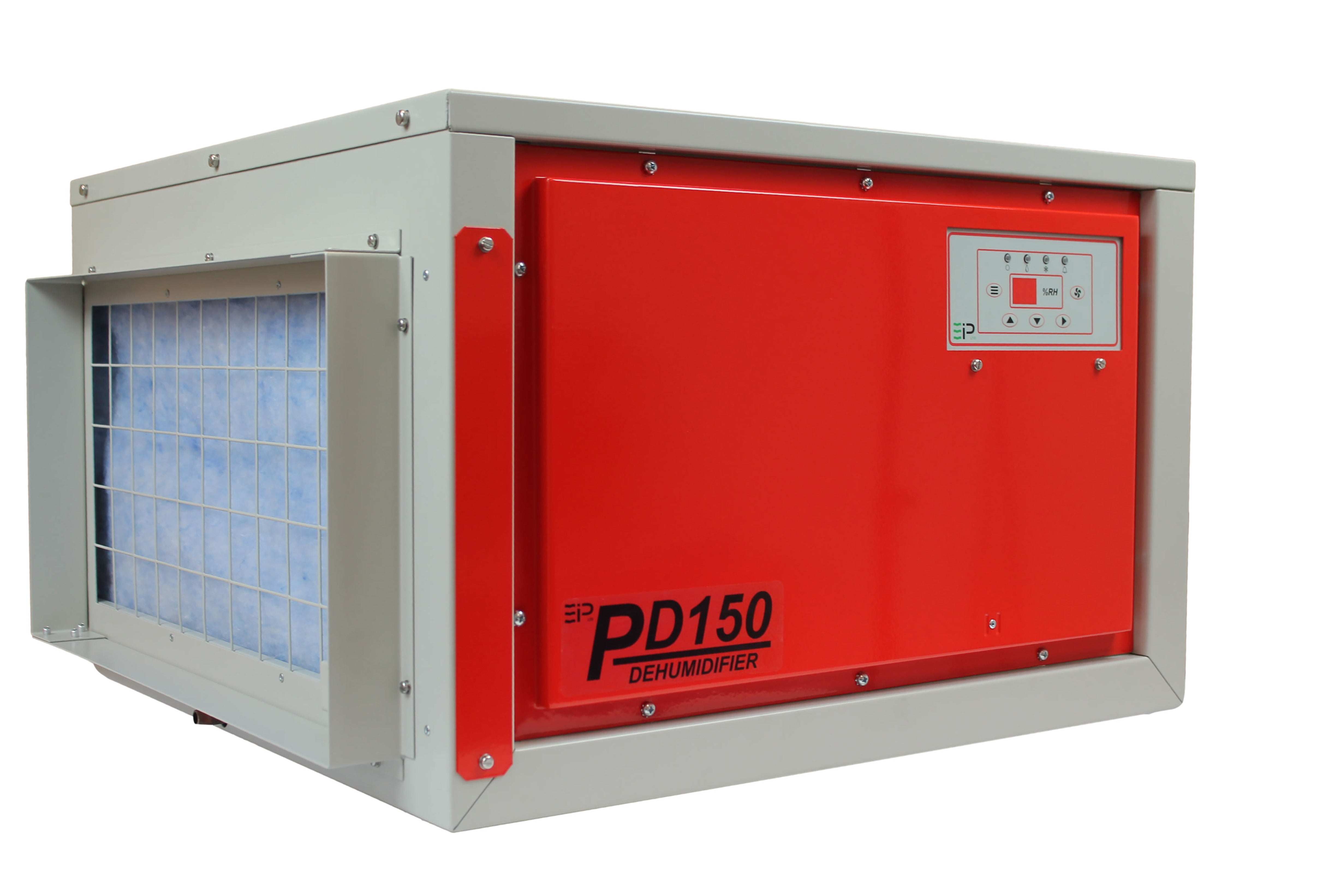

EbacUSA PD150-D Pool and Spa Dehumidifier 220V 10156GY-US

Digital humidity control for indoor pool and spa spaces, with standalone or ducted installation.

The EbacUSA PD150-D Pool and Spa Dehumidifier helps manage moisture released into the air by indoor pools and spas. Model 10156GY-US operates on 220V, single-phase, 60Hz power and uses an adjustable digital humidistat to maintain your selected relative humidity. Ebac rates extraction at 145 pints per day at 80°F and 60% RH, increasing to 170 pints per day at 80°F and 80% RH.

Commercial and Industrial Applications

Indoor pool and spa areas place continuing moisture demands on a building. The PD150-D is designed for these humidity-control applications and can operate as a standalone unit or be installed in a ducted system. Select capacity for the actual moisture load and room conditions rather than floor area alone. Its internal humidistat provides local control, with interfaces available for optional remote controls when the unit is installed away from the occupied space.

Performance and Construction

A two-speed centrifugal fan moves air through the refrigeration system, where moisture condenses and drains through the condensate tube. Air passes over the condenser before returning to the room warmer and drier. Temperature-sensitive reverse-cycle defrost automatically addresses frost buildup during low-temperature operation, within the manufacturer’s published 33°F to 95°F operating range.

• Adjustable digital humidistat with system status indicators and an internal diagnostics menu.
• Two-speed airflow: 586 CFM on low and 665 CFM on high.
• Heavy-gauge, epoxy-coated steel case with enclosed coils.
• Easy-to-change cartridge air filter.
• Gravity drainage through a 1/2-inch outside-diameter drain connection.
• Remote humidistat and remote touch-panel interfaces; controls are optional accessories.
• Underside runners with predrilled mounting points and ducting capability.

What’s Included

• 1 PD150-D dehumidifier.
• 1 PD150-D owner’s manual.
• 1 six-pin plug.
• 1 length of 3/8-inch inside-diameter PVC tube, 3 meters long.
• 1 Jubilee clip.

Remote touch panels and remote humidistats are listed separately as accessories, not in the manufacturer’s box-contents list.

Why Choose the PD150-D?

The PD150-D combines digital humidity adjustment, two airflow settings and flexible installation for ongoing pool and spa moisture control. Local indicators and diagnostics make operating status accessible, while optional remote interfaces let the control location suit the installation. Its cartridge filter and gravity drain provide defined maintenance and drainage points for a permanent setup.

Need help selecting the Ebac PD150-D or checking installation requirements? Call eVacuumStore at 866-972-8227 or email support@evacuumstore.com.
