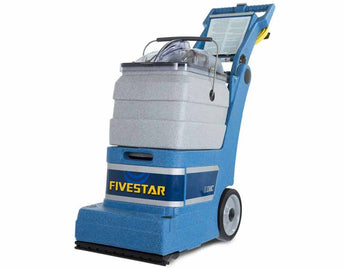

EDIC FiveStar 401TR 3G Self-Contained Carpet Extractor
-
Free shipping on all orders of $50+
-
Easy returns within 30 days
-
For Assistance: Call (866) 972-8227
Request a Quote
Description
EDIC FiveStar 401TR Operator's Manual
The EDIC FiveStar 401TR is a three gallon self-contained carpet extractor that uses four rows of chevron design brush strips to agitate and kick up deep-seated dirt and debris that is trapped in your carpets. This carpet extractor has an automatic self-adjusting brush that will raise or lower its height, depending on the length of carpet that you're cleaning. You will be able to clean uneven floor surfaces without shortening the lifespan of the brush. This model's design also features a side extension that allows you to clean right up to the baseboards. All of this is powered by a 2 horsepower, 112 CFM motor that was designed with long-lasting performance in mind. The motor is upright-mounted and combines with an internal inter cooler system, which together allow for safe and continuous operation.
Aside from the raw power of this carpet extractor, this model is also user-friendly, thanks in part to its maneuverability, which is due to its adjustable handle and lightweight body. With those aforementioned features, just about anyone can properly operate this piece of janitorial equipment. Another main feature of this machine is its innovative bladder design that makes it easy to maintain and fill the solution and recovery tank. Basically, this model allows users to fill and empty the same tank, so you do not have to put the solution in a separate container. Furthermore, the tank is constructed from a tough polyethylene plastic, which can be easily removed with the attached carrying handle. This model also features a translucent recovery dome, so you know where your levels are at all times. There are also several optional accessories that can be used with this model, such as their carpet wand, upholstery tool and extension hoses.
Finally, this machine is backed by a comprehensive manufacturer's warranty that covers parts and labor for five years, and the body of the machine has a lifetime warranty. This is a heavy-duty carpet extractor that is built to perform and built to last, all while giving any type of carpeting a thorough and deep cleaning. Please call (866) 972-8227 for more information, or to place an order over the phone.
Part numbers and Alternate Part numbers
Product Specs
Model: | FiveStar 401TR |
Solution Tank Capacity: | 3 gallons |
Lift-Off Recovery Tank Capacity: | 3 gallons |
Solution Pump: | 85 psi |
Vacuum Motor: | 2 HP, 112 CFM |
Water Lift: | 107 inches |
Brush Motor: | 1/6 HP |
Brush Speed: | 2,500 RPM |
Brush Style: | Chevron Design (4 rows) |
Brush Bearings: | Sealed, stainless steel ball bearings |
Cleaning Width: | 12 inches |
Tank Construction: | Polyethylene |
Wheel Size: | 7 inches (non-marring) |
Power Cord: | 25 feet |
Dimensions: | 24" H x 23" L x 12" W |
Weight: | 40 lbs. |
Shipping Weight: | 53 lbs. |
Shipping Dimensions: | 28" H x 26" L x 15" W |
Electrical Draw: | 12 amps |
Warranty: | 5 years parts and labor, lifetime body warranty |
Features
