SKU: BEAM-102038

Electrolux CV3291 Afuera Control Module

$119.04 $88.00 Sale Out of stock

Currently Unavailable
Call for Pricing
  • Free shipping on all orders of $50+
  • Easy returns within 30 days
  • For Assistance: Call (866) 972-8227
Description

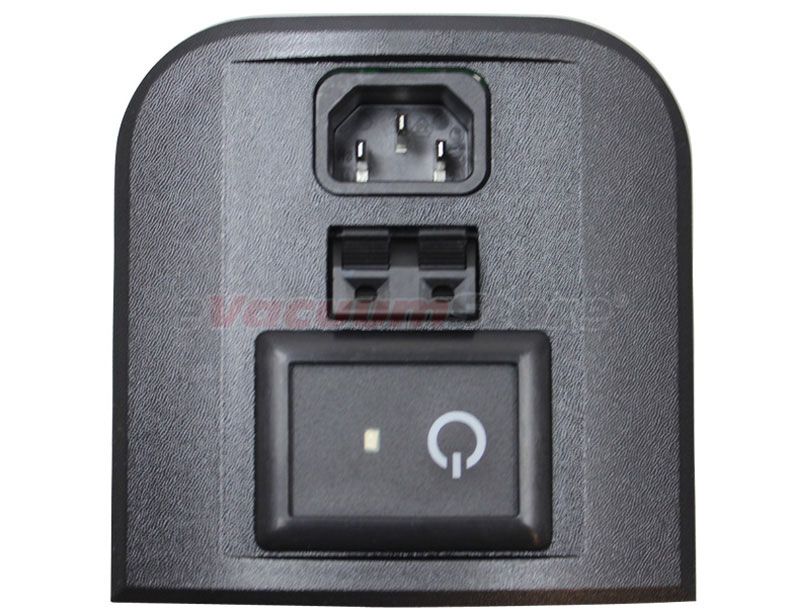

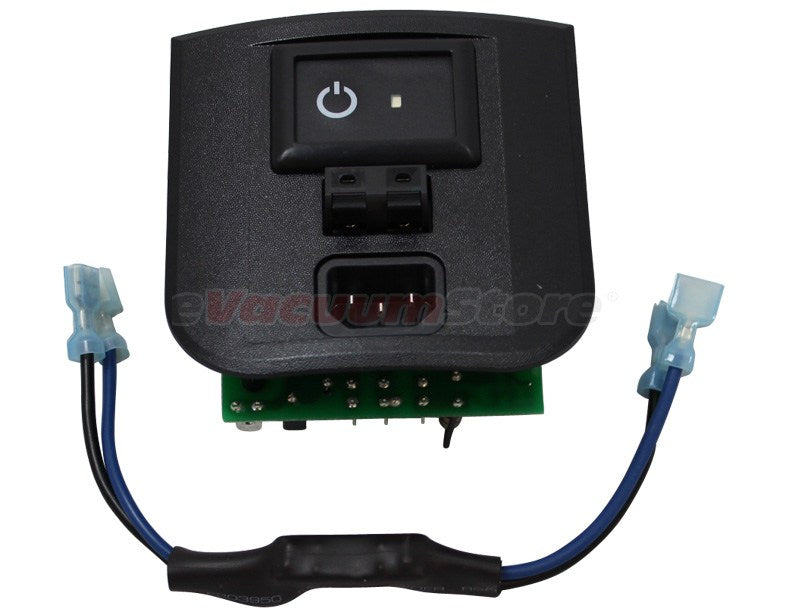

Electrolux CV3291 Afuera central vacuum control module.

120 Volts.
15 Amps.

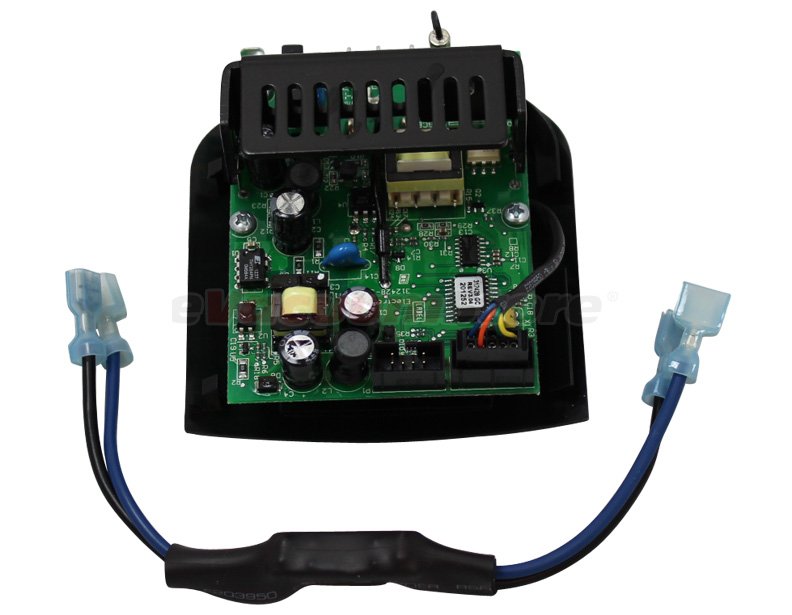

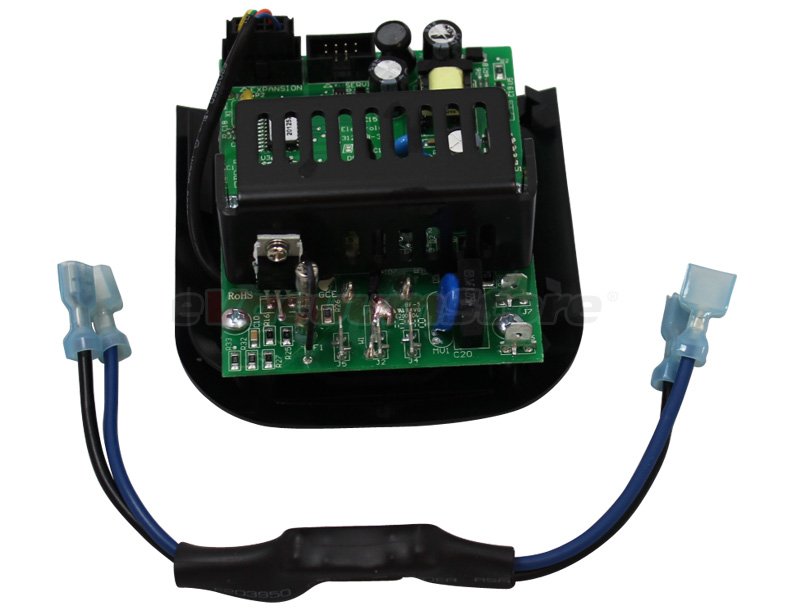

This is the main circuit board for your Electrolux Afuera built-in vacuum system.


Wire Connections:
Motor leads connect to J4 and J5
Ground lead connects to J2
Part numbers and Alternate Part numbers
100575, 102038
Model

CV3291
Rating

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous

I guess supplies are low at the moment, so they sent me a part that had been previously installed. When I expressed concern, they said that they would warranty the part for a year. Communication with their sales rep, Donna, was great.

A
Anonymous

Worked perfect! Kind of pain to get out, but follow the wiring instructions and also take note on the ground lead on J2 noted on the product page here. Fired right up after I was having issues with the unit turning on from the handle/hose. Pop to the lid off the top Slide the control module out unplug the (2) motor wires and ground wire Plug in the harness as shown in the enclosed diagram Plug in the ground to J2 Reassemble Poof! it works again.
