Name: Electrolux EPIC Elbow Assembly Blue
Brand: Electrolux
SKU: LUX-62224
Price: 29.99 USD
Availability: InStock
Rating: 4.77 (30 reviews)

Description

Electrolux EPIC elbow assembly will fit all models that start with N137 and N106 which can be found on the bottom of your power nozzle. The wires inside the elbow typically break or the electrical contacts can become corroded, if this is the case then you will need to change the elbow assembly which is a easy repair.

Electrolux power nozzle elbow assembly fits models 6500, 7000, Lux9000, Central Vacs, Guardian, Epic 8000, Legacy and Renaissance. Swivel style elbow.

Color update: This elbow now ships all white, although the product title says Blue.

What You Get

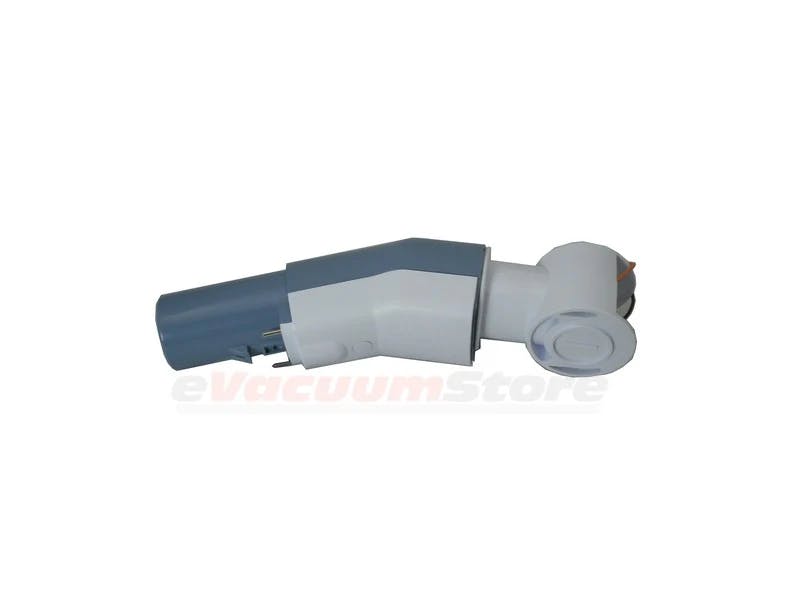

One replacement Electrolux EPIC swivel-style power nozzle elbow assembly, SKU LUX-62224. This is the elbow assembly shown in the original listing; the replacement currently ships in white. Wands, hose, belt, and power nozzle are not listed as included.

Compatible Models

Check the model label on the bottom of your power nozzle. The original listing identifies power nozzle models beginning with N137 and N106, and lists use with Electrolux 6500, 7000, Lux 9000, Guardian, Epic 8000, Legacy, Renaissance, and central vacuum configurations. Confirm the nozzle model and swivel connection before ordering; the vacuum name by itself does not identify every nozzle version.

Which Electrolux Belt Do I Need?

The elbow and belt are separate parts. Use the model number stamped or labeled on the underside of the power nozzle to choose a belt. An Epic or Guardian vacuum can have different power nozzle versions.

For an N106 nozzle or an unreadable label, verify the exact power head and its belt before ordering. The elbow's compatibility does not establish belt compatibility.

Specifications

Product	Electrolux EPIC power nozzle elbow assembly
Connection	Swivel-style elbow
Store SKU	LUX-62224
Current shipping color	White (original listing title: Blue)
Model identification	N137 or N106 prefix on bottom of compatible power nozzle, per original listing

Installation Video

Installation instructions are shown in the original video below. Disconnect the vacuum from power before inspecting the nozzle, elbow, hose, or wand contacts.

FAQ

Why is my Electrolux power nozzle cutting out?

An intermittent connection can come from a loose or worn elbow, broken wires inside it, or corroded or heat-damaged contacts. The hose handle, wands, and nozzle connections can also interrupt power. Unplug the vacuum and inspect the full electrical path before replacing a part.

Why does my Electrolux power nozzle not work?

Check that the nozzle is switched on and the vacuum is supplying power. With the vacuum unplugged, inspect the elbow and the electrical contacts at the hose, wands, and nozzle. If the motor runs but the brush does not spin, inspect the belt and brush roll instead. A failed nozzle motor or switch is another possibility.

I replaced my Electrolux elbow and the power nozzle still does not work. What should I check?

Check that the elbow is fully seated and its electrical connections were reassembled correctly. Inspect the wand and hose contacts for discoloration, looseness, or pitting. If those are sound, the fault may be in the hose wiring, switch, or power nozzle motor. A replacement elbow only repairs a fault in the elbow.

Do I need to replace my Electrolux wands and hose if the electrical contacts are burned out in the elbow?

Not automatically. Inspect each mating contact with the vacuum unplugged. If the wand or hose contacts are also burned, loose, melted, or heavily pitted, replacing only the elbow may leave a poor connection that heats up again. Have damaged electrical parts repaired or replaced before using the nozzle.

Will this fix the light bulb in my Electrolux power nozzle?

Only if a failed elbow connection is interrupting power to the light. A burned-out bulb, socket, wiring, switch, or other nozzle fault will not be fixed by replacing the elbow.

Can I replace the wire harness in the Electrolux elbow?

The original listing identifies broken wires inside the elbow as a reason to replace the elbow assembly. Wire harnesses are not available for sale.

Part numbers and Alternate Part numbers

62224

Model

C134A, C134B, C134E, C154B, C134C, C154E, C134D, C134F, C154A, C104A, C104H, C102A, C102D, C102G, C102J, C153C, C153D, C101K, C141C, C141E, C141G, C152C, C102K, C153A, E117A, E130A, E130B, E130G, E130J
