Esteam Ninja 200 PSI Classic Dual Stage Vacuum with Heater

Owner's Manual

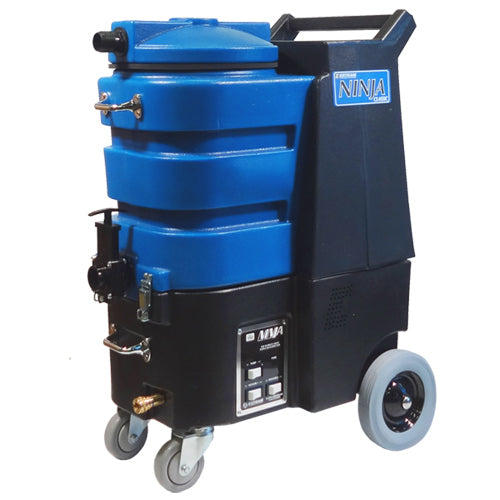

The Ninja 200 PSI Classic Dual Stage Vacuum with Heater is a portable extractor that offers even more PSI than the 150-10, offering you a more powerful clean. If you don’t like taking time from your work to dump out tanks and unplug and replug cords, this is the carpet extractor for you. This extractor comes with a large 10-gallon recovery tank as well as a 10-gallon solution tank so you won’t be delayed as often.

With this machine, you get two long 25-foot cords, enabling you to clean more carpet area in less time. For an even wider cleaning radius, you can use the optional 25-foot vacuum and solution hoses, for a stunning 50 feet of cleaning.

To operate this portable extractor, insert the electrical cords into 3 pin grounded outlets. Two cord machines must be plugged into separate circuits. When this happens, the green light will be illuminated to show that the machine is ready for you to operate.

The manufacturer recommends the Esteam Liquid defoamer, which will prevent the machine from shutting off prematurely because of too much foam in the recovery tank. Turn on the vacuum and pour ¼ cup of the defoamer into the end of the vacuum hose.

To prime the 200 PSI plunger, fill the fresh water tank and turn the vacuum and pump on. Cover the vacuum barb on the recovery tank and pull the prime valve trigger for around 30 seconds. Shut the pump and vacuum off and connect the hoses for cleaning. The machine is now ready to use.

To adjust pump pressure, turn the pressure regulator clockwise to increase the pressure and counterclockwise to decrease it. The pressure regulator is at the lower front of the machine.

Part numbers and Alternate Part numbers
