Esteam Ninja 500 PSI Single 3 Stage Vacuum With Heater

Owner's Manual

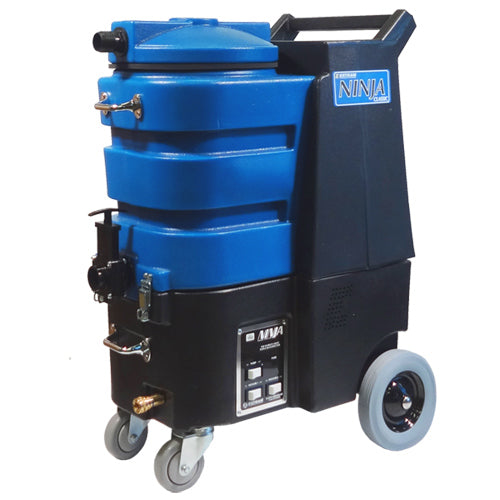

The Ninja 500 PSI Single 3 Stage Vacuum with heateruses a unique single 3-stage vacuum producing 135 inches of water lift, including a standard 500 PSI pump.

It delivers cleaning power and versatility, providing performance that is unmatched in the cleaning industry. Its maximum efficiency cuts time and labor costs. It also includes 25-inch power cords to use this device in any area you need it to, distance not being an issue.

This portable extractor also includes an internal heater so it can deliver quick and dry moisture removal. The design with its two-wheel platform makes it easy to move the Ninja around over floors and carpets smoothly.

To operate this extractor, plug the electrical cords into three-pin grounded outlets. Plug electrical cords into separate outlets. You should see a green light once you have done so, indicating that your extractor is ready for use.

To prevent the machine from shutting off due to extra foam in the recovery tank, use Esteam Liquid Defoamer. Simply pour ¼ cup of the solution into the end of a vacuum hose with the machine on.

To prime the 500 psi pump, fill the fresh water tank and turn on the vacuum. Release pressure by depressing the prime valve before you turn on the pump. This will keep you from blowing a fuse or over amping the pump motor.

Turn the pump on and cover the vacuum barb on the recovery tank. Pull the prime valve trigger for about 30 seconds, and then shut off the pump and vacuum. Once you’ve connected the hoses for cleaning, the vacuum is ready to use.
