J.E. Adams 9235-3 Car Wash Vacuum with 3 Motors
- Large Stainless Steel Dome (9235-3)
- Large Lighted Plastic Dome (9235-3LD)
- 3-Motor System
- 15 Foot hose
-
Free shipping on all orders of $50+ -
Easy returns within 30 days -
For Assistance: Call (866) 972-8227
Request a Quote
Description
J.E. Adams 3-Motor Car Wash Vacuum, Model 9235-3
J.E. Adams Installation Manual | J.E. Adams Product Brochure | J.E. Adams Product Review
For high quality suction for your repair shop, oil change facilities, car dealerships, car washes, or for businesses hoping to provide their customers with commercial-grade cleaning, the J.E. Adams 9235-3 is a front runner. This J.E. Adams commercial vacuum runs using a 3 motor system that can be toggled on or off with a convenient switch. Each of the motors inside of this powerful machine are 1.6 horsepower, 120 volt motors that require 30 Amp service.
Since this vacuum cleaner does not come with a coin box built in, it allows businesses to offer ""free"" cleaning to their patrons. Although the coin collection box does not comes standard with this unit, it is possible to have it added on. Similarly, alterations can be made to the hose. The vacuum hose that comes standard with the JE Adams 9235-3 is a 15 foot black hose with a 2 inch diameter. However, 25 and 50 foot hoses are also available, just as the colors red, blue, yellow, green and beige are too. For alterations to this J.E. Adams car wash vacuum and hose, please contact our sales department by calling 866-972-8227 before ordering.
JE Adams 9235-3LD 3 Motor Commercial Vacuum
The 9235-3LD car wash vacuum cleaner uses the same 3 motor system that the 9235-3 uses. The specifications of the 9235-3LD are identical to the 9235-3 with the exception of the weight. This is due to the dome at the top of the unit. The 9235-3LD comes equipped with a plastic, lighted dome rather than a stainless steel one. As a result, the weight of the unit is less. The lighted domes are available in various colors including: dark green, light green, yellow, blue, purple and red. Call 866-972-8227 prior to ordering to specify the dome color.

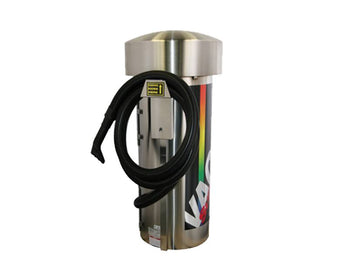

NOTE: PICTURE SHOWS STAINLESS STEEL DOME OPTION AND YOU WILL BE SHIPPED THE COLOR YOU CHOOSE IN THE DROP BOX.
Part numbers and Alternate Part numbers
Product Specs
| Model Number: | 9235-3, 9235-3LD |
| Primary Function: | Vacuuming |
| Number of Motors: | Three |
| Motor Power: | 1.6 Horsepower Each |
| Voltage: | 120 Volts |
| Amps Required: | 30 AMPS |
| Weight: | 135 Pounds (9235-3) 130 Pounds (9235-3LD |
| ETL Approvied: | Yes |
| Dome Style: | Stainless Steel (9235-3) Lighted Plastic Dome (9235-3LD |
Features
- Has 3 motors that are 1.6 Horsepower and 120 volts each
- Motors require 30 AMPS of service
- Has large stainless steel dome for motor housing
- Has an On/Off switch for quick and easy use by you or patrons of your business
- Hose comes standard in black but is also available in red, blue, yellow green and beige (call for details)
- Hose comes at a standard length of 15 feet with a 2 inch diameter but is also available in 25 and 50 foot lengths as well as 1 1/2 inch diameter, both at an additional charge (call for details)
- The 2 inch hose yields 210 CFM and 415.4 Air Watts
- The 1 1/2 inch hose yields 165.9 CFM and 662.3 Air Watts
- Hose is threaded into the vacuum to prevent it from breaking or being removed
- Has dual service doors to make cleaning out the filter bag area easier
- Lighted plastic dome for model 9235-3LD available in dark green, light green, yellow, blue, purple and yellow
- Optional features are available for additional charges:
- Push Button Start w/ Timer (Part# 9225PBK)
- Security Cover for Service Door (Part# 9427K)
- Vinyl Clean-out Bag (Part# 8599)
- Rubber Clean-out container (Part# 8080)
