J.E. Adams Super Vac 9209 Car Wash Vacuum W/ Bill Validator
- Bill Validator
- Accepts both coins and bills
- 15 foot hose for ease of use
-
Free shipping on all orders of $50+ -
Easy returns within 30 days -
For Assistance: Call (866) 972-8227
Request a Quote
Description

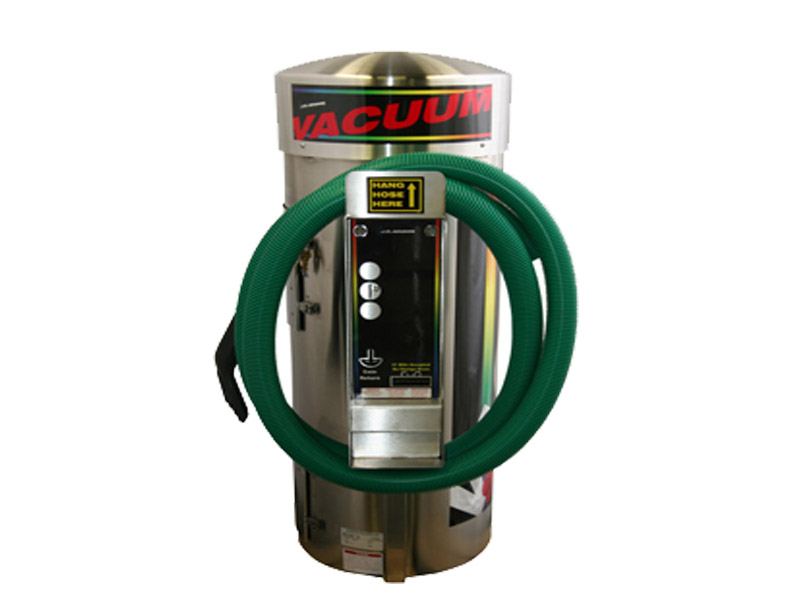

JE Adams 9209 Commercial Vacuum
J.E. Adams Installation Manual | J.E. Adams Product Brochure
The JE Adams Super Vac model 9209 offers incredible suction thanks to the impressive 2-motor system concealed within. It allows for detailed, yet powerful commercial-grade cleaning for automobiles and is an ideal addition to car washes and gas stations. Unlike some other models of car wash vacuum cleaners, this machine accepts coins and bills in order to provide the desired run-time for the consumers making use of it. The Imonex coin acceptor accepts quarters and can hold up to $235 in change while the Coinco bill acceptor takes both $1.00 bills and $5.00 bills. Due to the amount of currency that this machine can hold, the coin box is secured with a pin-locking system.
When it comes to the cleaning capabilities of the JE Adams 9209, the suction power speaks for itself. Each of the two motors in this unit wield 1.6 horsepower and 120 volts and operate through 20 amps of service. The standard hose that comes with the vacuum is 15 feet long and 2 inches in diameter. When using the standard hose, the 9209 operates at 163.5 CFM (cubic feet per minute) and has 193.4 air watts of power. For additional information regarding this JE Adams 9209 car wash vacuum, or for alterations to the hose (see features), don't hesitate to contact the eVacuumStore sales department at 866-972-8227.
Installation instructions can be found on the 9209 owners manual
Part numbers and Alternate Part numbers
Product Specs
| Category: | Car Wash |
| Line: | Vacuums |
| Model #: | 9209 |
| Shipping Weight: | 152.00 lb. |
| Number of Motors: | 2 Motors |
| Motor Horsepower: | 1.6 HP Each |
| Motor Voltage: | 120 Volts Each |
| Required Amps: | 20 Amps |
| Bill Validator: | Yes |
| Coin Acceptor: | Yes |
| Threaded Hose System: | Yes |
Features
- Powerful, 2 motor system (Part# 8055EM)
- Requires 20 AMP service
- Each motor is 1.6 horsepower and 120 volts
- When using the 2" standard hose =163.5 CFM /193.4 Air Watts
- When using the 1 1/2" hose = 140.8 CFM / 402.4 Air Watts
- Double service doors offer easy access to clean outarea and 4 filter bag system (Replacement Item #8076)
- Coin box is secured with pin lock system (Replacement Item #8638)
- Internal vacuum hose threading system prevents crushing
- Hose: Black, 2” x 15’, swivel cuff and nozzle included (25’ and 50’ also available in 1 1/2” or 2” for additional charge).
- 2" x 15' hoseavailable in red, blue, yellow, green, and beige at no additional charge.
- Faceplate secured with 2 Medeco cam locks (Replacement Item #8953)
- Coinco bill acceptor takes $1.00 and $5.00 bills (Replacement Item #8130-6)
- Imonex coin acceptor takes quarters (Replacement Item #8149)
- Coin acceptor can hold up to $235
- Optional security accessories, timers, coin mechs, cycle counters, coin counters, motors, colored decals (yellow, blue, purple),clean-out bag, and clean-out container are available at an additional charge
