Kenmore K650 Hard Floor All in One 3 Inlet Builders Package

Kenmore K650 Hard Floor All-in-One 3-Inlet Central Vacuum Builder’s Package

A complete central vacuum installation package for mid-size to large hard-floor homes. The Kenmore K650 Hard Floor 3-Inlet Builder’s Package bundles the powerful Kenmore K650 central vacuum power unit with a full 3-inlet rough-in plumbing kit, 100 feet of PVC pipe, a standard hard floor accessory kit, plus a free vacpan and dust mop. Designed for homes up to 7,000 square feet, the K650 sits between the K550 and K695 in the Kenmore central vacuum lineup — delivering sealed HEPA filtration and 650 air watts in a package optimized for hard flooring.

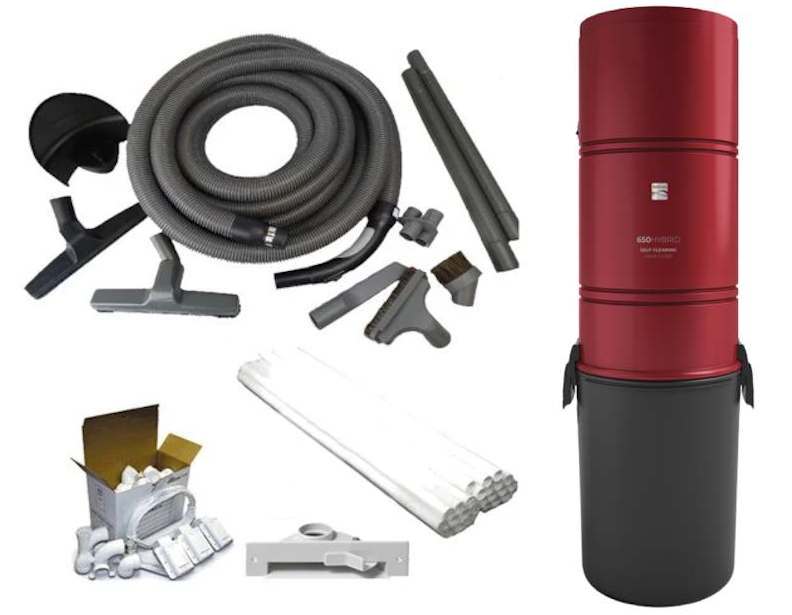

Complete Package Contents

Kenmore K650 Central Vacuum Power Unit

• 650 air watts | 116 CFM airflow | 125” water lift
• Sealed HEPA filtration with glued seams — captures particles as small as 0.3 microns
• 6-gallon / 22.7L debris pail — empties only a few times per year
• Bagged or bagless operation (compatible with Kenmore 391A bags)
• 66 dB ultra-quiet Thru-Flow motor
• 7-year motor warranty | 3-year labor warranty

3-Inlet Rough-In Plumbing Kit

• 9x 90° Sweep Elbows
• 6x Couplings
• 1x 90° Sweep
• 3x 90° Short Elbows
• 6x 45° Elbows
• 1x 45° Wye
• 6x Pipe Straps
• 3x Mounting Brackets
• 3x Inlet Valves
• 1x Can of PVC Cement
• 1x 50’ 18-2 Low Voltage Wire

100’ PVC Pipe

Standard Central Vacuum Hard Floor Kit

• 30’ low voltage crushproof hose
• Two 19” wands
• 10” floor brush
• 10” carpet tool
• Crevice tool
• Horsehair dusting brush
• Upholstery tool
• Hose hanger

Bonus Inclusions (No Added Cost)

• Vacpan — kick-open floor inlet for hands-free debris sweeping on hard floors
• Dust Mop — for quick hard floor maintenance between full cleanings

Kenmore K650 Power Unit — Key Features

Sealed HEPA Filtration

The K650 uses a sealed HEPA filter with glued seams — capturing particles as small as 0.3 microns, including dust, pollen, pet dander, and allergens. Unlike filters with unsealed edges, the glued seam construction prevents bypass, ensuring nothing escapes back into your breathing air. An excellent central vacuum for allergy and asthma sufferers.

Bagged or Bagless — Your Choice

Run with Kenmore Model 391A vacuum bags for added filtration and hygienic hands-free disposal, or switch to bagless mode anytime to eliminate ongoing bag costs. The 6-gallon (22.7L) debris pail only needs emptying a few times per year in either mode.

Whisper-Quiet Operation

At just 66 decibels, the K650’s Thru-Flow motor runs quietly without a muffler. Installed in a garage, basement, or utility room, you can vacuum without disrupting daily activities — conversations, television, even calls — in adjacent rooms.

K650 Specifications

• Air Watts: 650 AW
• Airflow: 116 CFM
• Water Lift: 125 in.
• Amps: 13.5A / 120V / 1,620W
• Sound Level: 66 dB
• Capacity: 6 Gal / 22.7L
• Motor Type: Thru-Flow
• Weight: 26 lbs
• Dimensions: 13¾” x 14⅞” x 36⅞”
• Recommended Home Size: Up to 7,000 sq. ft.
• Bag Type: Bagless or Kenmore 391A disposable bag
• Power Cord: 6 ft.
• Warranty: 7-year motor warranty; 3-year labor warranty

Additional Features

• Wall Mount Bracket: Keeps accessories organized and off the floor
• Ergonomic Debris Pail Latches: Comfortable grip design for easy, no-mess emptying
• Multi-Directional Vacuum Connection: Flexible inlet positioning for straightforward installation in any room layout
