Kenmore K695 Deluxe All in One 3 Inlet Builders Package

Kenmore K695 Deluxe All-in-One 3-Inlet Central Vacuum Builder’s Package

Everything a builder or homeowner needs to install a complete, fully functional central vacuum system — in one package. The Kenmore K695 Deluxe 3-Inlet Builder’s Package bundles the powerful Kenmore K695 central vacuum power unit with a full 3-inlet rough-in plumbing kit, the VEK2A Deluxe Central Vacuum accessory kit, 100 feet of PVC pipe, plus a free vacpan, dust mop, and garage kit. For homes up to 9,000 square feet, this is the most complete central vacuum installation package available.

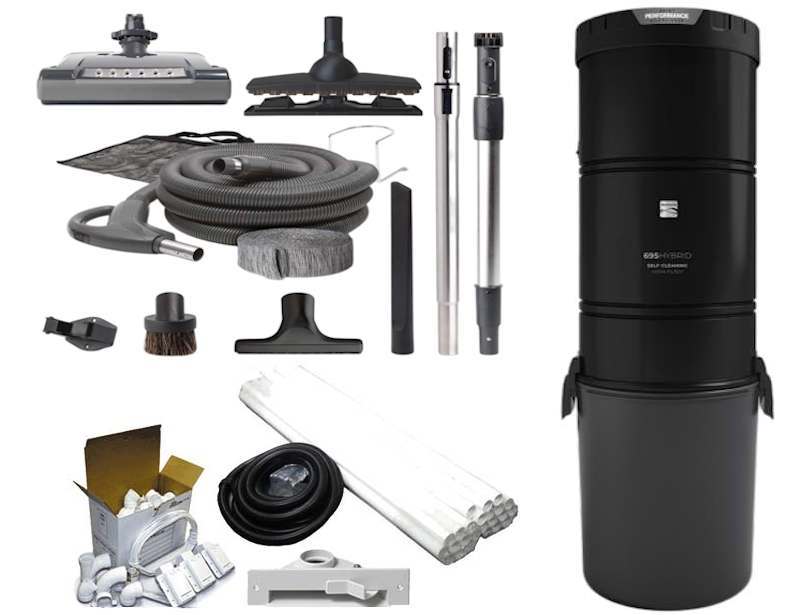

Complete Package Contents

Kenmore K695 Central Vacuum Power Unit

• 695 air watts | 125 CFM airflow | 130” water lift
• Sealed HEPA 2.0 filtration — captures particles as small as 0.3 microns
• 6-gallon / 22.7L debris pail — empties only a few times per year
• Bagged or bagless operation (compatible with Kenmore 391A bags)
• 66 dB ultra-quiet Thru-Flow motor
• 7-year motor warranty | 3-year labor warranty

3-Inlet Rough-In Plumbing Kit

• 9x 90° Sweep Elbows
• 6x Couplings
• 1x 90° Sweep
• 3x 90° Short Elbows
• 6x 45° Elbows
• 1x 45° Wye
• 6x Pipe Straps
• 3x Mounting Brackets
• 3x Inlet Valves
• 1x Can of PVC Cement
• 1x 50’ 18-2 Low Voltage Wire

100’ PVC Pipe

Kenmore VEK2A Deluxe Central Vacuum Kit

• 30’ Electric Crushproof Hose
• Deluxe Electric Powerhead
• Deluxe Electric Ratcheting Wand
• Premium Twist & Turn Floor Brush
• Natural Hair Dusting Brush
• Long Crevice Tool
• Natural Hair Upholstery Tool
• Hose Sock
• Wall Mount Hose Hanger
• Wall Mount Wand Hanger
• Mesh Storage Bag

Bonus Inclusions (No Added Cost)

• Vacpan — built-in kick-open floor inlet for hands-free debris sweeping
• Dust Mop — for quick hard floor maintenance
• Garage Kit including:
  • 30’ low voltage crush-proof hose
  • Two 19” wands
  • 10” floor brush
  • 10” carpet tool
  • Crevice tool
  • Horsehair dusting brush
  • Upholstery tool
  • Hose hanger

Kenmore K695 Power Unit — Key Features

Sealed HEPA 2.0 Filtration

The K695 captures particles as small as 0.3 microns — including dust, pollen, pet dander, and allergens — with a sealed HEPA 2.0 filter. A secondary exhaust filter at the unit traps carbon dust from the motor, keeping the air clean even adjacent to the power unit. The ideal central vacuum for allergy and asthma sufferers.

Bagged or Bagless Operation

Run with Kenmore Model 391A vacuum bags for added filtration and convenient disposal, or switch to bagless mode anytime. The 6-gallon debris pail only needs emptying a few times per year — saving time and reducing ongoing maintenance costs.

Whisper-Quiet Performance

At just 66 decibels, the K695’s Thru-Flow motor is among the quietest in its class. And because the power unit installs in a garage, basement, or utility room, noise in your living areas is virtually eliminated.

K695 Specifications

• Air Watts: 695 AW
• Airflow: 125 CFM
• Water Lift: 130 in.
• Amps: 13.5A / 120V / 1,620W
• Sound Level: 66 dB
• Capacity: 6 Gal / 22.7L
• Motor Type: Thru-Flow
• Weight: 28 lbs
• Dimensions: 13¾” x 14⅞” x 38½”
• Recommended Home Size: Up to 9,000 sq. ft.
• Bag Type: Bagless or Kenmore 391A disposable bag
• Power Cord: 6 ft.
• Warranty: 7-year motor warranty; 3-year labor warranty

Additional Features

• Wall Mount Bracket: Keeps accessories organized and off the floor
• Ergonomic Debris Pail Latches: Comfortable grip design for easy, no-mess emptying
• Multi-Directional Vacuum Connection: Flexible inlet positioning for straightforward installation in any room layout
