Kenmore K695 Hard Floor All in One 3 Inlet Builders Package

Kenmore K695 Hard Floor All-in-One 3-Inlet Central Vacuum Builder’s Package

The most straightforward way to install a whole-home central vacuum system optimized for hard floors. The Kenmore K695 Hard Floor 3-Inlet Builder’s Package bundles the powerful Kenmore K695 central vacuum power unit with a complete 3-inlet rough-in plumbing kit, 100 feet of PVC pipe, a standard central vacuum accessory kit with hard floor tools, plus a free vacpan and dust mop. Everything you need for a clean, professional central vacuum installation — for homes up to 9,000 square feet.

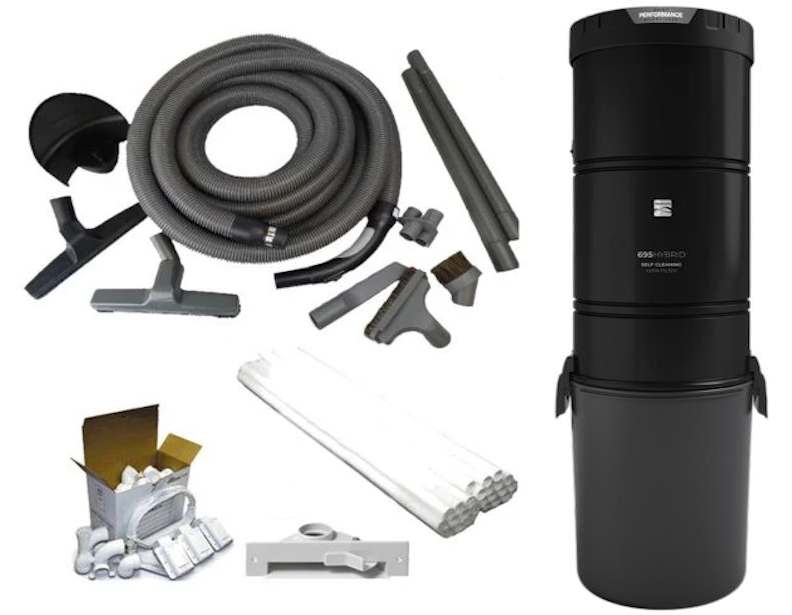

Complete Package Contents

Kenmore K695 Central Vacuum Power Unit

• 695 air watts | 125 CFM airflow | 130” water lift
• Sealed HEPA 2.0 filtration — captures particles as small as 0.3 microns
• 6-gallon / 22.7L debris pail — empties only a few times per year
• Bagged or bagless operation (compatible with Kenmore 391A bags)
• 66 dB ultra-quiet Thru-Flow motor
• 7-year motor warranty | 3-year labor warranty

3-Inlet Rough-In Plumbing Kit

• 9x 90° Sweep Elbows
• 6x Couplings
• 1x 90° Sweep
• 3x 90° Short Elbows
• 6x 45° Elbows
• 1x 45° Wye
• 6x Pipe Straps
• 3x Mounting Brackets
• 3x Inlet Valves
• 1x Can of PVC Cement
• 1x 50’ 18-2 Low Voltage Wire

100’ PVC Pipe

Standard Central Vacuum Hard Floor Kit

• 30’ low voltage crushproof hose
• Two 19” wands
• 10” floor brush
• 10” carpet tool
• Crevice tool
• Horsehair dusting brush
• Upholstery tool
• Hose hanger

Bonus Inclusions (No Added Cost)

• Vacpan — kick-open floor inlet for hands-free debris sweeping on hard floors
• Dust Mop — for quick hard floor maintenance between full cleanings

Kenmore K695 Power Unit — Key Features

Sealed HEPA 2.0 Filtration

The K695 captures particles as small as 0.3 microns — dust, pollen, pet dander, and allergens — with a sealed HEPA 2.0 filter. A secondary exhaust filter at the unit also traps carbon dust from the motor, keeping air quality high even near the power unit. An excellent choice for allergy and asthma sufferers.

Bagged or Bagless Operation

Run with Kenmore Model 391A vacuum bags for added filtration and hands-free disposal, or switch to bagless mode to cut ongoing costs. Either way, the 6-gallon debris pail only needs emptying a few times per year.

Whisper-Quiet Performance

At just 66 decibels, the K695’s Thru-Flow motor runs quietly enough that you can vacuum without disturbing the rest of the household. And because the power unit installs in a garage, basement, or utility room, noise in your living areas is virtually eliminated.

K695 Specifications

• Air Watts: 695 AW
• Airflow: 125 CFM
• Water Lift: 130 in.
• Amps: 13.5A / 120V / 1,620W
• Sound Level: 66 dB
• Capacity: 6 Gal / 22.7L
• Motor Type: Thru-Flow
• Weight: 28 lbs
• Dimensions: 13¾” x 14⅞” x 38½”
• Recommended Home Size: Up to 9,000 sq. ft.
• Bag Type: Bagless or Kenmore 391A disposable bag
• Power Cord: 6 ft.
• Warranty: 7-year motor warranty; 3-year labor warranty

Additional Features

• Wall Mount Bracket: Keeps accessories organized and off the floor
• Ergonomic Debris Pail Latches: Comfortable grip design for easy, no-mess emptying
• Multi-Directional Vacuum Connection: Flexible inlet positioning for straightforward installation in any room layout
