SKU: AQUA-AA001

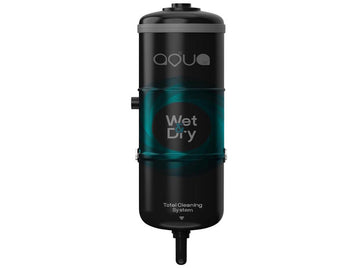

Aqua-Air Model 130 Central Vacuum Unit & Wet Extractor

$3,285.99 $2,856.63 Sale

  • Central Vacuum & Wet Extractor
  • Cold & Hot water with shut-off
  • 2" DWV drain to sewer
  • 1 Year/1000 Hour Warranty
Availability: In stock
  • Free shipping on all orders of $50+
  • Easy returns within 30 days
  • For Assistance: Call (866) 972-8227
Description
The Aqua-Air wet and dry central vacuum allows for maximum flexibility in your home or business.The cyclonic separator and cold water spray separate the water, foam and debris from the air flow without the need for filters or mechanical floats. Debris is separated from by a mesh screen allowing liquid to automatically flow down the drain.Handles all your tough jobs, daily floor and carpet cleaning, degreasingkitchen and unclogging sink. This unit will handle the demands of your auto shop, restaurant or dog kennel.

This Central Vacuum unit is available with several motor options to match your power needs for your application. Call 1-866-972-8227 today to place your order.
  • Model 130: 5.7" 3-Stage Extractor Motor
  • Model 150: 7.3" 3-Stage Extractor Motor
  • Model 158: 8.4" 2-Stage Extractor Motor
Part numbers and Alternate Part numbers
AA001, 130, AA003, 150, 158
Product Specs

Model:

Model 130

 Model 150 Model 158
Motor Type: 5.7" 3-Stage Extractor Motor 7.3" 3-Stage Extractor Motor 8.4" 2-Stage Extractor Motor
Unit Size: 14" x 47" 14" x 47" 14" x 47"
Sq Ft Coverage: Up to 4,000 sq ft Up to 5,000 sq ft Up to 5,000 sq ft

Airflow:

101 CFM

 102 CFM 141 CFM

Volts:

120

 120 120

Amps:

13.7

 14 14

Water Lift:

137"

 145" 146"

Color:

Black

 Black Black

Motor Size:

5.7"

 7.3" 8.4"

Free Shipping:

Yes

 Yes Yes
Features
POWER UNIT FEATURES
  • Material Resistant to Rust and Oxidation
  • Stain Resistance
  • Electric Shock Proof
  • Flame Retardant
  • A.B.S. Lustran Material
  • 35 cm x 120 cm (14" x 47")
RECOVERY TANK FEATURES: The Aqua-Air Power Unit uses the cyclonic separator and cold water spray to remove water, foam and matter from the air flow without restrictive filters or mechanical floats. Large debris is contained in a mesh screen while the liquids automatically dump down the drain.

OPERATIONAL REQUIREMENTS:
  • 120 V
  • 60 Hz
  • 15 amp Standard Plug
  • Cold water equipped with shut-off
  • Hot water (up to 170° F [77° C]) equipped with shut-off
  • Unit connects directly into water outlets OR to cleaning formula injection unit (optional, AA031 or AA033).
  • Drains to sewer via 2" DWV
  • To comply with Plumbing Codes, P-Trap and Vent required
  • For power units stationed in a small enclosed space, the motor exhaust must be directed out of building by way of the shortest route possible.

INSTALLATION PARAMETERS
The power unit should be stationed somewhere in the building that is protected from freezing temperatures, the mounting bracket secured tightly and firmly to a stud, brick, or another ideal anchoring material. Leave at least 12 inches of space on each side of the power unit and at the top. Enough room for the drain connection and accessibility to debris screen must be left below the unit.

Inlet Valves and installation tubing use 2" PVC vacuum tubing and fittings.

WATER OUTLETS
Water Outlets are positioned beside the vacuum inlets. Water lines can either be 3/8" or 1/2" PEX, 3/8" copper or other similar tubing that is ideal for the structure. Piping, line, and tube connections should be made in areas that are easily accessible.

WARRANTY FOR RESIDENTIAL USE
The Aqua-Air Power Unit is covered under a five (5) year warranty, starting from the date of purchase.
The attachments, accessories, tools, and hoses are covered under a one (1) year warranty, starting from the date of purchase.
Part# AA001, AA003
Model

Model 130, Model 150, Model 158
