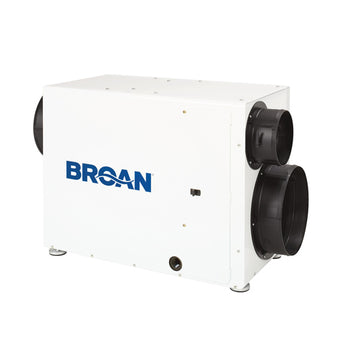

Broan 98 Pint Dehumidifier
- Provides 2,300 square feet of coverage
- Integrates directly into your home’s heating and cooling system
- Allows humidity control via a wall mounted DEH 3000 digital controller
-
Free shipping on all orders of $50+ -
Easy returns within 30 days -
For Assistance: Call (866) 972-8227
Description
The Broan 98 Pint Dehumidifier is one of the most reliable integrated ventilating dehumidifiers on the market today. Featuring MERV-13 filtration and a dedicated moisture control system, the Broan 98 Pint Dehumidifier is the perfect choice for energy efficient humidity control in the home.
The Broan 98 also comes fitted with an optional fresh air intake that can be connected to an outdoor air duct to provide additional ventilation. Best of all, the Broan 98 Pint Dehumidifier integrates directly into your home’s heating and cooling system, ensuring full coverage throughout the whole structure.
When determining where to install your dehumidifier, here are a few things to consider. You’ll need sufficient clearance to handle the overall dimensions of the dehumidifier along with the return and supply ductwork for the unit. You’ll also need enough clearance for filter removal and to prevent airflow from being obstructed.
To service the unit, you’ll need to be able to remove a side panel. Make sure there’s enough clearance on a side of the unit to do so. Put the humidifier in an area where the cord’s length (9 feet) reaches an electrical outlet with a minimum 15-amp circuit capacity.
Put the dehumidifier in an area where field wiring the control is possible, and use a backdraft damper in the discharge duct of the dehumidifier (especially if you’re connecting to the supply ducting system). This damper will prevent supply air from counter-flowing through the dehumidifier when it’s not in operation. Make sure you allow enough space to install this accessory if needed.
You can suspend the dehumidifier from structures with steel hanger straps or a suitable alternative, as long as the assembly supports the base in its entirety. Do not hang the dehumidifier from its cabinet. Allow proper routing and drainage of drain pipes.
Part numbers and Alternate Part numbers
Product Specs
- Warranty: 2 year limited (product), 6 year limited (components)
- Water Removal: 98 Pints (12.25 gallons)
- Filtration: MERV-13
- Efficiency: 6.1 Pints / kWh
- Coverage: 2,300 square feet
- Drain Connection: ¾ inch threaded female NPT
- Supply Air Duct: 10 inch diameter
- Return Air Duct: 10 inch diameter
- Fresh Air Duct: 6 inch diameter
- Cord: 9 feet, 115 VAC
- Voltage: 115 volt - 1 phase - 60 Hz
- Power: 670 watts @ 80 degrees fahrenheit and 60 percent RH
- Circuit: 15 Amps
- Weight: 81 pounds
- Dimensions: 14.5 inches by 19.5 inches by 32.375 inches
Features
- Removes 98 pints of water per day
- Provides 2,300 square feet of coverage — about the size of the average home in the U.S.
- Integrates directly into your home’s heating and cooling system
- Includes an optional fresh air intake system
- Allows humidity control via a wall mounted DEH 3000 digital controller
- Operates quietly, with minimal power draw
