J.E Adams 3-Motor 9213 Car Wash Super Vacuum with Coin Acceptor
- Powerful 3-Motor System
- Stainless Steel or Lighted, Plastic Dome
- Models 9213VR and 9213LD-VR are Vault Ready
- Comes Standard w/ 15 foot hose and coin acceptor
-
Free shipping on all orders of $50+ -
Easy returns within 30 days -
For Assistance: Call (866) 972-8227
Request a Quote
Description

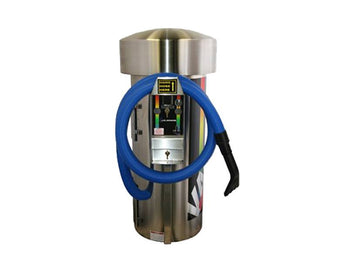

J.E. Adams 3 Motor Commercial Vacuum with Stainless Steel Dome, Model 9213
J.E. Adams Installation Manual | J.E. Adams Product Brochure | J.E. Adams Product Review
The 9213 by J.E. Adams is a versatile, high-end car wash vacuum that is ideal for commercial locations such as car detail shops, gas stations and other similar locations. Many vacuums of this style boast a powerful 2-motor system, but that is where the 9213 shines above the rest. This J.E. Adams unit houses a third 1.6 horsepower motor for an additional surge of suction power which helps to finish the job more quickly, as well as provide more efficient results. For added durability, the dome at the top of the vacuum is made of stainless steel which helps to protect both the 3-motor system, and the unit overall.
J.E. Adams 9213VR Vault Ready Car Wash Vacuum with Stainless Steel Dome and Coin Acceptor
The ""VR"" in the model number of this commercial vacuum cleaner stands for ""vault ready."" Unlike the 9213 which has a coin box located on the unit and is secured through a pin-locking system, the 9213VR uses a vault located below the machine to hold the coins inserted. The vault is typically bricked or cemented below the unit with tubing running from it to the vacuum. The tubing transfers the coins into the vault keeping them safe and secure.
J.E. Adams 9213LD Commercial Vacuum Cleaner with Lighted Dome
If you're looking for a lighter weight car wash vacuum for consumer use, then the 9213LD is sure to meet and exceed your expectations. This magnificent powerhouse has the same 3-motor system as the stainless steel 9213 model. The primary difference is the dome on the top of the machine. The 9213LD comes with a lighted dome which is made of plastic and is available in a variety of colors.
J.E Adams Vault Ready Car Wash Vacuum Cleaner with a Lighted Dome and Coin Acceptor
This particular J.E. Adams vacuum cleaner unit offers a vault ready feature with a lighter weight plastic dome rather than a cumbersome stainless steel one. The dome is available in a few different colors and protects the 3-motor system that the whole 9213 series of commercial vacuums share.
VAULT READY DESCRIPTION:
There are two primary ways to store coins in a self-serve environment; either inside the equipment in a coin box or in a vault that is installed beneath the meter to collect coins. Vaults can hold anywhere from $700 in quarters for the 10-inch model up to $1600 for the 18-inch (10”, 14”, and 18” vaults available for sale). Since most vaults are cemented or bricked in on all sides they are very difficult for thieves to break into. JE Adams provides the 2” threaded nipple and vault tube cover for most units and customers are required to supply concrete bases and tubing to direct money to the vault. Units can be lowered to meet ADA requirements.
NOTE: As of 3-10-16 the vault cover height has changed to a standard height of 7"" to help accommodate ADA compliance requests.
*For alterations to the vacuum units, hose, or lighted domes, contact the eVacuumStore sales department by calling 866-972-8227
Part numbers and Alternate Part numbers
Product Specs
| Model: | 9213 | 9213VR | 9213LD | 9213LD-VR |
| Primary Function: | Vacuuming | Vacuuming | Vacuuming | Vacuuming |
| Number of Motors: | 3 motors | 3 motors | 3 motors | 3 motors |
| Motor Horsepower: | 1.6 HP Each | 1.6HP Each | 1.6HP Each | 1.6HP Each |
| Motor Voltage: | 120 Volts | 120 Volts | 120 Volts | 120 Volts |
| Amps Required: | 30 Amps | 30 Amps | 30 Amps | 30 Amps |
| Number of Hoses: | One | One | One | One |
| Standard Hose Length: | 15 Feet | 15 Feet | 15 Feet | 15 Feet |
| Vault Ready: | No | Yes | No | Yes |
| Dome Style: | Stainless Steel | Stainless Steel | Plastic, Lighted Dome | Plastic, Lighted Dome |
| ETL Listed: | Yes | Yes | Yes | Yes |
Features
- All of the 9213 models comes standard with 3 powerful motors
- Each motor packs 1.6 horsepower and 120 volts
- 30 Amps of service is required for these commercial vacuums
- The vacuums come equipped with an Imonex coin box which is capable of holding 940 quarters (part# 8149)
- Both the Imonex coin box and faceplate are secured in place with a pin lock system (part# 8638)
- A 110 volt SSAC timer comes standard with each model (part# 8712SS4)
- Hoses come standard as black 2 inch X 15 foot hoses
- For an additional charge 25 and 50 foot hoses are available, as well as a 1/12 inch diameter hose
- Various hose colors are also available at no additional charge
- The available hose colors are red, blue, yellow, green and beige
- When using the 2 inch hose, the CFM rating is 210 and the air watts are 415.4
- When using the 1 1/2 inch hose, the CFM rating is 165.9 and the air watts are 662.3
- Optional features are available for additional charges:
- Colored Decals (Yellow, Blue, Purple)
- Coin acceptors, coin counters and cycle counters
- Timer
- Vinyl Clean-out bag and rubber clean-out container
9213VR and 9213LD-VR:
- These units are vault ready which means that a larger vault is used to hold coins
- The vaults are oftentimes cemented or bricked underneath the unit for durability and security reasons
- Tubing to transfer coins to the vault is included with these models
- These two vacuums come standard with a stainless steel dome at the top
- Both of these commercial vacuum cleaners come standard with a plastic, lighted dome
- The lighted domes are available in various colors (call for details)
9213 and 9213VR:
9213LD and 9213LD-VR:
