J.E. Adams 9220 Super Vac w/ Medeco Cam and Threaded Locks
- Uses Medeco Locking System
- 2 Powerful Motors
- Large Coin Box
- Lengthy 15 Foot Hose
-
Free shipping on all orders of $50+ -
Easy returns within 30 days -
For Assistance: Call (866) 972-8227
Request a Quote
Description

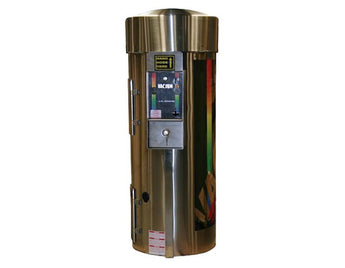

J.E. Adams 9220 2-Motor Super Vacuum with Medeco Locking System
J.E. Adams Installation Manual | J.E. Adams Product Brochure | J.E. Adams Product Review
The J.E Adams 9220 Super Vac offers the convenience of an on-board coin box with the security that has come to be know of the Medeco locking mechanisms. The coin box itself is secured onto this commercial vacuum with a Medeco threaded lock while the faceplate is positioned on using a Medeco cam lock. The threaded lock includes one key for operation so make sure it remains safe! It has been found that the Medeco locking system on the J.E. Adams 9220 commercial vacuum is superior to the standard pin-locking system which also comes very highly regarded.
In terms of performance, this particular car wash vacuum roars using its impressive 2 motor system to quickly vacuum automobiles or industrial settings. When combined with the swiveling 15 foot hose, vacuuming is made easy with the 9220. The coin box on this machine can hold up to 1100 quarters, which are taken by the Imonex coin acceptor, so you'll be making a return on your investment in no time at all!
Download the 9220 owners manual for installation instructions.
Part numbers and Alternate Part numbers
Product Specs
| Model: | 9220 |
| Number of Motors: | Two Motors |
| Motor Horsepower: | 1.6HP Each |
| Motor Voltage: | 120 Volts |
| Amp Service Required: | 20 Amps |
| Standard Hose Length: | 15 Feet |
| Standard Hose Diameter: | 2 Inches |
| Standard Hose Color: | Black |
| Hose Threaded Internally: | No |
| Hose Swivel: | Yes |
| Hose Available in Different Colors: | Yes. Red, Blue, Yellow, Green and Beige |
| On-Board Timer: | Yes |
| Coin Acceptor: | Yes |
| Bill Validator: | No |
| On-Board Coin Box: | Yes |
| Vault Ready: | No |
| Dome Style: | Small Stainless Steel |
| Medeco Lock System: | Yes |
Features
- Powerful, 2 motor system
- Each motor is 1.6 Horsepower and 120 volts
- The required amp service is 20 amps
- Hose comes standard in black but is available in red, blue, yellow, green and beige at no extra charge
- The standard hose length is 2 inches by 15 feet
- Hose is available in 25 and 50 foot lengths for additional charge
- A 1 1/2 inch swivel cuff hose is also available for an added charge
- With the 2 inch hose, CFM (cubic feet per minute) = 163.5 and Air Watts = 193.4
- With the 1 1/2 inch hose, CFM = 140.8 and Air Watts = 402.4
- Coin box is on-board the machine
- The coin box can hold up to 1100 quarters which is $275
- It is secured with the Medeco threaded lock (Part# 8955)
- The Faceplate of the machine is secured with a Medeco cam lock (Part# 8953)
- The coin acceptor is an Imonex coin acceptor which takes quarters (Part# 8149)
- Small stainless steel dome at the top for motor protection
- Uses SSAC timer which is 110 volts (Part# 8712SS4)
- Has double service doors for easy access to the 4 filter bag and clean out area
