J.E. Adams 9225-2 & 9225-3 Wall Mounted Commercial Vacuum
- Powerful 2-Motor or 3-Motor System
- Wall* or pole mounted
- Stainless Steel Construction
- 15 Foot hose
-
Free shipping on all orders of $50+ -
Easy returns within 30 days -
For Assistance: Call (866) 972-8227
Request a Quote
Description

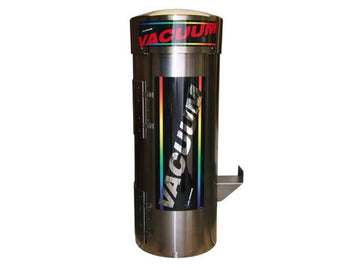

J.E. Adams 9225-2 2-Motor Wall Mounted* Commercial Vacuum
J.E. Adams Installation Manual | J.E. Adams Product Brochure | J.E. Adams Product Review
The J.E. Adams 9225-2 powerful 2-motor system operates with the option for an on/off toggle switch that the buyer needs to install. This model provides extra flexibility with the option of mounting to a wall or pole. The 2 motors in this vacuum each produce 1.6 horsepower on 120 volts providing strong suction every time. This commercial vacuum does not come with a coin box, but has the ability to have one added on.
- 2 Motors with 2"" hose = 163.5 CFM / 193.4 Air Watts
- 2 Motors with 1 1/2"" hose = 140.8 CFM / 402.4 Air Watts
J.E. Adams 9225-3 3-Motor Wall Mounted* Commercial Vacuum
The J.E. Adams 9225-3 has a powerful 3-motor system that operates with optional on/off toggle switch which the buyer needs to install. This model provides extra flexibility with the option of mounting to a wall or pole. For even more suction power the 9225-3 3 motor design moves more CFM than the 2 motor designs. With The 3 motors in this vacuum each produce 1.6 horsepower on 120 volts providing strong suction every time. This commercial vacuum does not come with a coin box, but has the ability to have one added on.
- 3 Motors with 2"" hose = 210 CFM / 415.4 Air Watts
- 3 Motors with 1 1/2"" hose = 165.9 CFM / 662.3 Air Watts
The 15 foot hose comes standard in black but is also available in red, beige, yellow, blue and green. The hoses are also available in 25 and 50 foot hose lengths, as well as a 1 1/2 inch diameter rather than the standard 2 inch size. For the desired alterations to the hose, please call our sales team at 1-866-972-8227 before placing your order.
Part numbers and Alternate Part numbers
Product Specs
| Model# | 9225-2 | 9225-3 |
| Primary Function: | Vacuuming | Vacuuming |
| Number of Motors: | 2 | 3 |
| ETL Approved: | Yes | Yes |
| Weight: | 112lbs | 118lbs |
| Amps Required: | 20 Amps | 30 Amps |
| Voltage: | 120 Volts | 120 Volts |
Features
- 2 1.6 HP, 120 volt motors, Requires 20 AMP service (9225-2)
- 3 1.6 HP, 120 volt motors, Requires 30 AMP service (9225-3)
- Wall or pole mounted
- Direct wire to an electrical switch or a toggle switch away from the vacuum
- Double service doors offer easy access to clean-out area and 4 filter bag system (Replacement Item #8076)
- Hose: Black, 2” x 15’, swivel cuff and nozzle included (25’ and 50’ also available in 1 1/2” or 2” for additional charge).
- Hose available in red, blue, yellow, green, and beige at no additional charge.
- Internal vacuum hose threading system
- Optional accessories available at an additional charge:
- Service Door Security Cover (Item #9427K)
- Cycle Counters
- Vinyl Clean-out Bag (Item #8599)
- Rubber Clean-out Container (Item #8080)
