J.E. Adams 9230 2-Motor Super Vac w/ Medeco Lock System
- 2 Motor System
- Holds up to 1100 Quarters
- Stainless Steel and Plastic Dome Models Available
- Includes 110 Volt Timer
-
Free shipping on all orders of $50+ -
Easy returns within 30 days -
For Assistance: Call (866) 972-8227
Request a Quote
Description

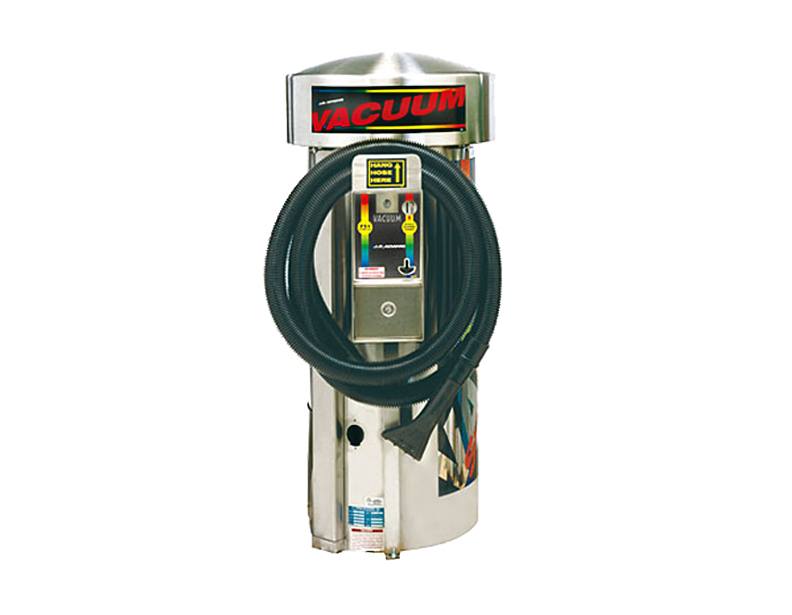

J.E. Adams 9230 w/ Medeco Locks and Large Stainless Steel Dome
J.E. Adams Installation Manual | J.E. Adams Product Brochure | J.E. Adams Product Review
If a secure and durable machine is something required of your business then the JE Adams 9230 is one of the commercial vacuums that comes most highly regarded. It provides the motor power that J.E. Adams customers have become accustomed to thanks to the incredible 2 motor system which comes as a standard feature. Unlike similar models such as the 9220, which have a small stainless steel dome, this machine comes with a larger dome. The dome helps to protect the motors housed within the unit and can also add to the overall durability of the vacuum as well. If you are concerned about maneuverability in terms of cleaning your car, fear not. The 9230 comes with the J.E. Adams standard 15 foot hose for long reach and versatility while cleaning. To add to the multifaceted nature of this unit, the hose is available in a variety of colors at no additional charge, as well as additional lengths for a nominal fee.

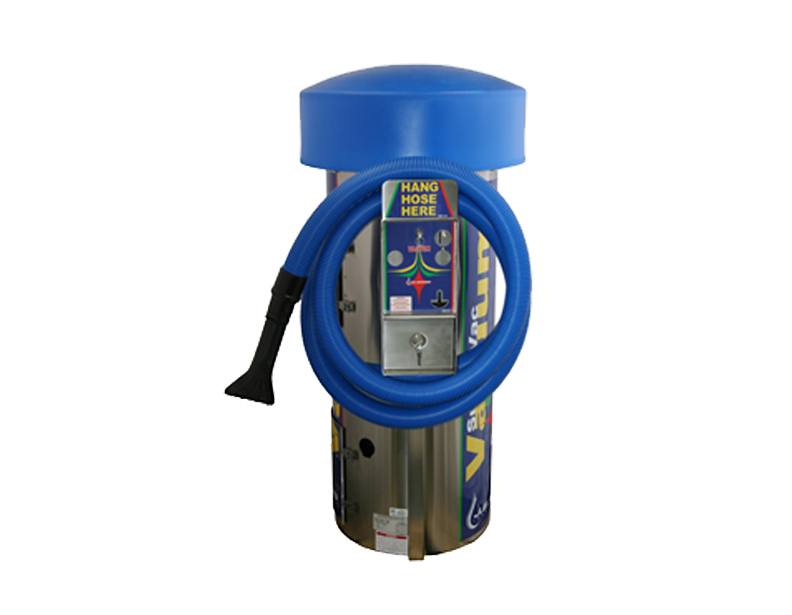

Perhaps the business searching for a stationary car wash vacuum is need of some form of color coordination. Luckily, J.E. Adams has taken this into consideration as well. The model 9230LD comes equipped with a lighted plastic dome rather than the stainless steel one that accompanies the 9230. The lighted dome is available in white, yellow, red, blue, purple, light green, and dark green to be chosen at the discretion of the business owner.
One of the features that sets the above mentioned J.E. Adams vacuum cleaner models apart from others is the Medeco lock system which guarantees the security of the on-board coin box. The box itself is secured onto the body of the vacuum with a threaded Medeco lock, while the faceplate requires a Medeco cam lock. The coins are taken in by the Imonex coin acceptor and then stored safely on-board. If assistance is required regarding the 9230 stainless steel dome machine or the lighted dome 9230LD, make sure to contact the eVacuumStore sales team at 866-972-8227.
Download the 9230 owners manual for more information and installation instructions.
Part numbers and Alternate Part numbers
Product Specs
| Model: | 9230 | 9230LD |
| Primary Function: | Vacuum | Vacuum |
| Secondary Function: | N/A | N/A |
| Number of Motors: | 2 Motors | 2 Motors |
| Motor Horsepower: | 1.6 Horsepower | 1.6 Horsepower |
| Motor Voltage: | 120 Volts Each | 120 Volts Each |
| Amps Required for Service: | 20 Amps | 20 Amps |
| Standard Hose Size | 2" X 15' | 2" X 15' |
| Standard Hose Color | Black | Black |
| Internally Threaded Hose: | No | No |
| Number of Hoses: | One | One |
| Medeco Locking System: | Yes | Yes |
| On-Board Coin Box: | Yes | Yes |
| Vault Ready: | No | No |
| Bill Validator: | No | No |
| Coin Acceptor: | Yes | Yes |
| Dome Style: | Stainless Steel | Lighted Plastic |
| On-Board SSAC Timer: | Yes | Yes |
Features
- Machine comes standard with two 1.6 horsepower motors
- Each motor is 120 volts
- 20 amps of service is required for proper use
- Standard hose size is 2 inches by 15 feet
- The standard size hose comes in black but can also be changed to red, blue, yellow, green and beige at no additional charge
- 25 and 50 foot hoses with either a 2 inch or 1 1/2 inch swivel cuff are also available for an extra charge
- The 2 inch swivel cuff yields 163.5 CFM and 193.4 Air Watts
- The 1 1/2 inch swivel cuff yields 140.8 CFM and 402.4 Air Watts
- The coin box (Part# 8954W) on this machine can hold up to 1100 quarters
- A Medeco threaded lock secures the coin box to the vacuum (Part# 8955)
- The faceplate of the machine is secured on with a Medeco cam lock (Part# 8953)
- An Imonex coin acceptor (Part# 8149) takes quarters for vacuum use
- 9230 and 9230LD both come standard with SSAC 110 volt timer
- Optional Accessories (for additional charge):
- Blue, Purple and Yellow Decals
- Coin Acceptors and counters
- Vinyl Clean-Out Bag
- Rubber clean-out container
- Additional Security Features
- Vacuum comes standard with large stainless steel dome for motor protection and aesthetics
- Vacuum model 9230LD has large lighted plastic dome for aesthetic purposes
- The lighted dome is available in red, blue, purple, white, yellow, light green and dark green
